MOLEX 451420310 Power Connector

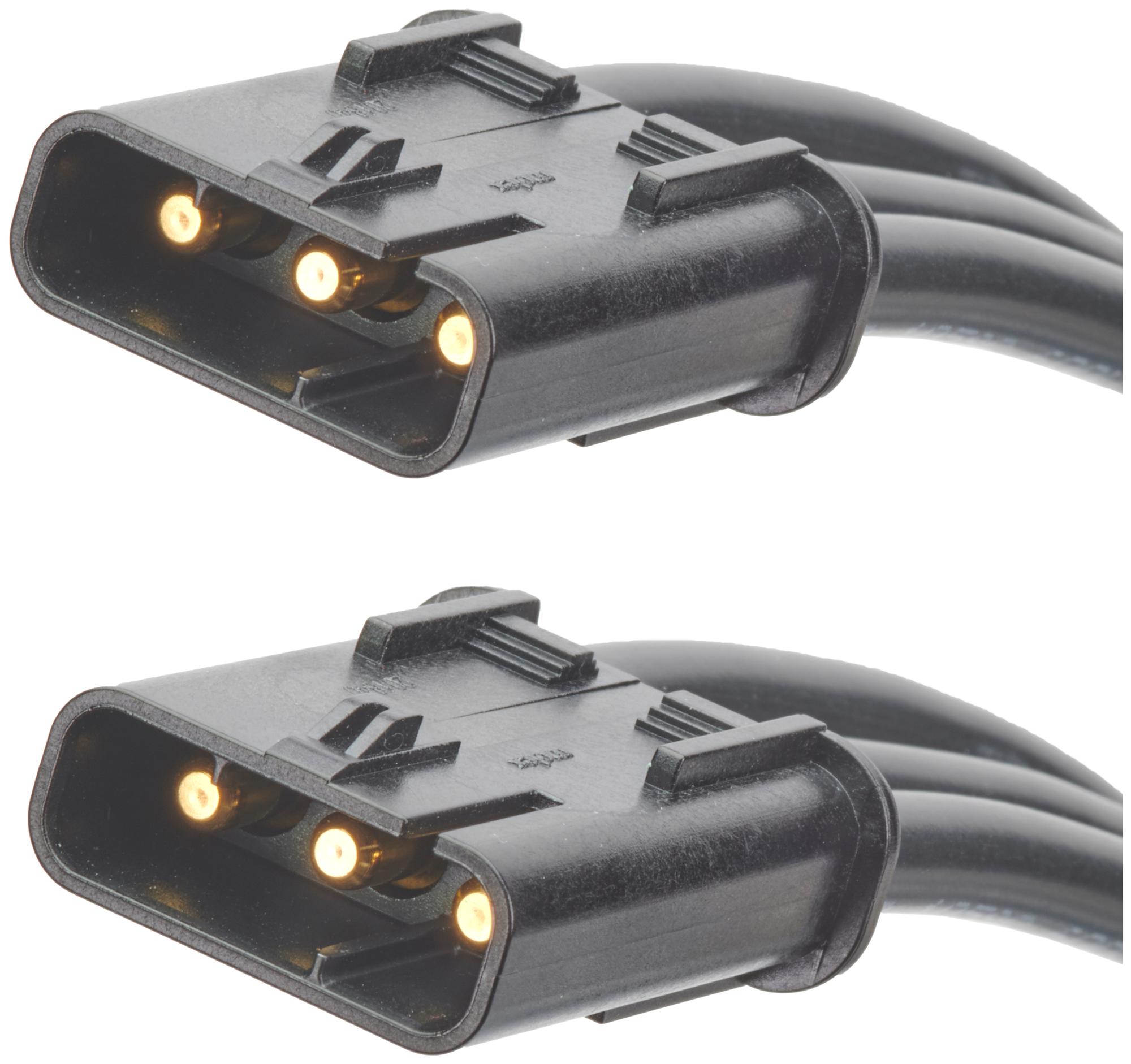

The MultiCat Power Connector assembly offers high reliability for power applications with precision-machined contacts, male-to-male configuration, and overmolded design. It features a 1.0-meter length, 8 AWG wire size, and 3 circuits for efficient power transmission. Made from copper alloy with gold over nickel phosphorus plating, this connector supports a maximum current of 40A and voltage of 1000V AC. Its black resin housing and robust construction make it suitable for wire-to-wire power connections in demanding industrial environments. RoHS and REACH compliant, it provides durability and excellent electrical performance.
MOLEX 451420310 Power Connector Specifications:
- Cable Length: 1.0 meters
- Circuits: 3
- Wire Size: 8 AWG
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel Phosphorus
- Material - Plating Termination: Gold
- Material - Resin: PEI
- Maximum Current per Contact: 40A
- Maximum Voltage: 1000V AC
- Gender: Male-Male
- Color - Resin: Black
- Lock to Mating Part: Yes
- Number of Rows: 1
- Pitch - Mating Interface: 4.03mm-5.84mm
- Wire Insulation Diameter: 4.03mm-5.84mm
- Assembly Configuration: Connector to Connector, Overmolded
- RoHS and REACH compliant, UL Listed
Buy the Molex Series 45142 MultiCat Power Connector: 0451420310
Experience reliable power connections with the Molex MultiCat Power Connector, featuring 8 AWG wires, 3 circuits, and a durable overmolded design. Ideal for industrial wire-to-wire power transfer, it supports up to 40 amps and 1000 volts, with gold-plated contacts for optimal conductivity. Constructed from high-quality copper alloy and PEI resin, it ensures longevity and consistent performance. RoHS and REACH compliant, this connector is perfect for demanding environments needing secure, high-current connections that withstand harsh conditions. Order online today for quick and easy installation.
Get Molex 0451420310 today—built for high current power transmission and durability in industrial applications.
