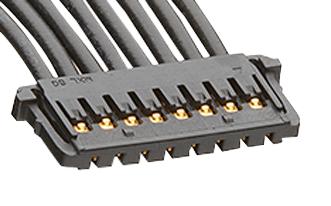

MOLEX 151320803 Pico-Lock Cable Assembly
The Pico-Lock connector system by Molex offers a reliable high-temperature thermoplastic cable assembly. Featuring 1.50mm pitch, single row, and an 8-circuit configuration with a length of 300mm, this black, halogen-free cable is designed for secure electrical connections in compact electronics. Its female-to-female connectors utilize crimp or compression termination, with copper alloy contacts plated in gold and tin. Suitable for applications requiring up to 150V, the assembly is RoHS compliant, providing robust performance, environmental safety, and ease of installation for board-to-wire connections in various electronic devices.
MOLEX 151320803 Pico-Lock Cable Assembly Specifications:
- Pitch: 1.50mm
- Number of Circuits: 8
- Cable Length: 300.00mm
- Color: Black
- Resin Material: High Temperature Thermoplastic
- Material - Metal: Copper Alloy
- Material - Plating: Gold (mating), Tin (termination)
- Wire Size: AWG 24
- Wire Insulation Diameter: 1.10mm
- Maximum Voltage: 150V
- RoHS Compliance: Yes, including China and ELV regulations
- Connector Type: Female-Female Pico-Lock
- Termination Style: Crimp or Compression
- Net Weight: 8.323 grams
- Environmental Certification: RoHS compliant, Halogen-Free
Buy the Buy Molex Pico-Lock Cable Part Number 151320803 Online
Discover the Molex Pico-Lock cable assembly, designed for secure and reliable electronic connections. Featuring an 1.50mm pitch, 8 circuits, and 300mm length, this black, RoHS-compliant wire harness is perfect for compact, high-temperature environments. Its female-to-female connectors with crimp or compression termination ensure easy installation and durability. Made from high-temperature thermoplastic and copper alloy with gold and tin plating, it provides excellent electrical performance and environmental safety. Purchase online today for quality, precision, and peace of mind in your electronic assembly projects.
Buy Molex Pico-Lock cable assembly now and experience reliable high-temperature performance with secure crimp termination and RoHS compliance.
