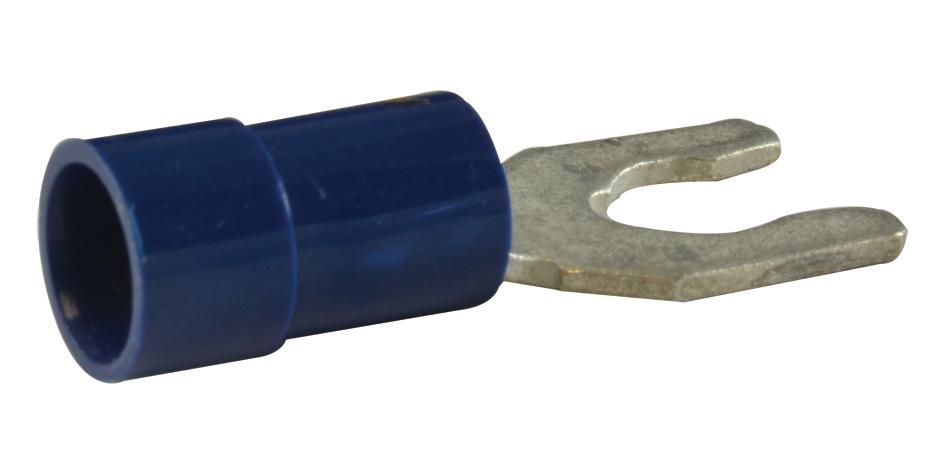

MOLEX 191420032 Spade Terminal
The InsulKrimp Spade Terminal is designed for 14 to 16 AWG wire, featuring a stud size of 10 (M5). It is a solderless terminal made of copper with tin plating, suitable for crimp or compression termination methods. This product complies with RoHS and UL standards, with a maximum operating temperature of 105°C. It comes in a blue color resin, with a net weight of 1.107 grams per unit, packaged in cartons of 10. The terminal ensures reliable electrical connections for industrial and electrical applications, offering high-quality, corrosion-resistant metal materials and easy assembly.
MOLEX 191420032 Spade Terminal Specifications:
- Wire Range: 14-16 AWG (1.00-2.50 mm²)
- Stud Size: 10 (M5)
- Material: Copper
- Plating: Tin
- Color: Blue
- Flammability: UL 94V-0
- Temperature Range - Operating: Up to 105°C
- Termination Interface: Crimp or Compression
- Net Weight: 1.107 grams per unit
- Packaging: Carton of 10 units
- Wire Insulation Diameter: 4.45mm max
- RoHS and UL compliant, halogen-free, and environmentally certified
Buy the Molex Series InsulKrimp Solderless Terminal: 191420032
Enhance your electrical wiring projects with Molex's Spade Terminal, designed for 14 to 16 AWG wire. Made from high-quality copper with tin plating, it offers excellent conductivity and corrosion resistance. The terminal features a crimp or compression interface, suitable for industrial and electrical use, with a maximum operating temperature of 105°C. It comes in a blue resin housing, ensuring easy identification and compatibility. Purchase this reliable, RoHS-compliant terminal online for fast delivery and superior performance in your electrical assemblies.
Get Molex 191420032 today—built for reliable electrical connections with durable, corrosion-resistant metal and easy crimping for industrial wiring projects.
Frequently Asked Questions
Where can I buy MOLEX 191420032?
You can click on the BUY or RFQ button to purchase 191420032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191420032?
You can download the 191420032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191420032?
MOLEX
