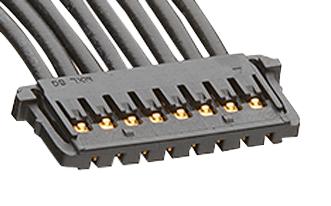

MOLEX 151321003 Pico-Lock Connector
The Pico-Lock connector system by Molex features a 1.50mm pitch, single-row, 10-circuit cable assembly, measuring 300mm in length. Designed with high-temperature thermoplastic resin, black color, and copper alloy metal parts with gold and tin plating, it ensures reliable electrical connections. Rated for up to 150V, it supports UL 1061 wire types with a 1.10mm insulation diameter and 24 AWG wire size. Suitable for PCB and wire-to-board applications, the Pico-Lock system offers durable, safe, and Halogen-Free performance for precise electronic interconnections in industrial and consumer electronics.
MOLEX 151321003 Pico-Lock Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 10
- Cable Length: 300.00mm
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating: Mating Gold, Termination Tin
- Material - Resin: High Temperature Thermoplastic
- Wire Insulation Diameter: 1.10mm
- Wire Size: 24 AWG
- Voltage - Maximum: 150V
- UL 1061 Wire Type: UL 1061
- Termination Interface: Crimp or Compression
- Environmental Compliance: RoHS, China RoHS, Halogen-Free
- Reference Drawing Number: 151321000-000
- Net Weight: 10.393 grams
Buy the Molex 151321003 – Reliable Pico-Lock Connector for Industrial Applications
Discover the Molex Pico-Lock Connector with 1.50mm pitch, 10 circuits, and 300mm length, designed for reliable electrical connections in industrial electronics. Made from high-temperature thermoplastic and copper alloy with gold and tin plating, it ensures durability and compliance with RoHS standards. Suitable for wire-to-board and PCB applications, it offers ease of crimp or compression termination, rated up to 150V, and UL 1061 approved wire types. Perfect for precise, safe, and efficient electronic assembly in a wide range of industrial and consumer electronics projects.
Get Molex 151321003 today—built for precision, safety, and long-lasting durability in electronic interconnections.
Frequently Asked Questions
Where can I buy MOLEX 151321003?
You can click on the BUY or RFQ button to purchase 151321003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151321003?
You can download the 151321003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151321003?
MOLEX
