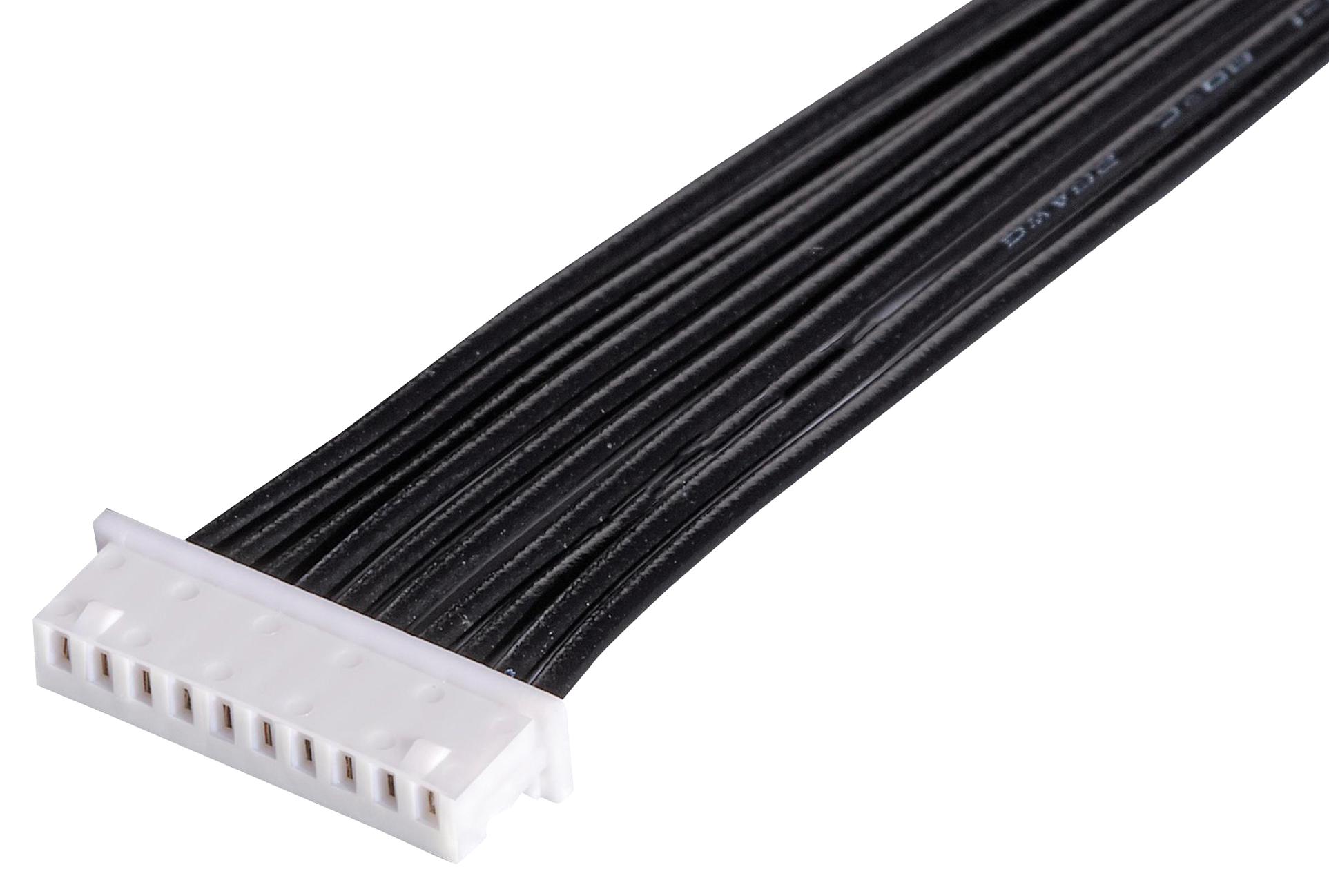

MOLEX 151341006 PicoBlade Cable Assembly
The MOLEX 15134-1006 PicoBlade cable assembly provides a reliable connection solution for signal transmission in various applications. This dual-ended assembly features PicoBlade connectors, offering a compact and robust design. Constructed with phosphor bronze terminals and tin plating for optimal conductivity, and a durable polyester resin overmold for protection, it's suitable for wire-to-board and wire-to-wire applications. The assembly supports a maximum current of 1.0A and a maximum voltage of 125V, making it ideal for signal and power distribution in electronic devices and systems.
MOLEX 151341006 PicoBlade Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 15134
- application: Signal, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- overmolded: No
- cable_length: 600.00mm
- circuits_loaded: 10
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 12.500/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048, PicoBlade Plug Housing 51047
