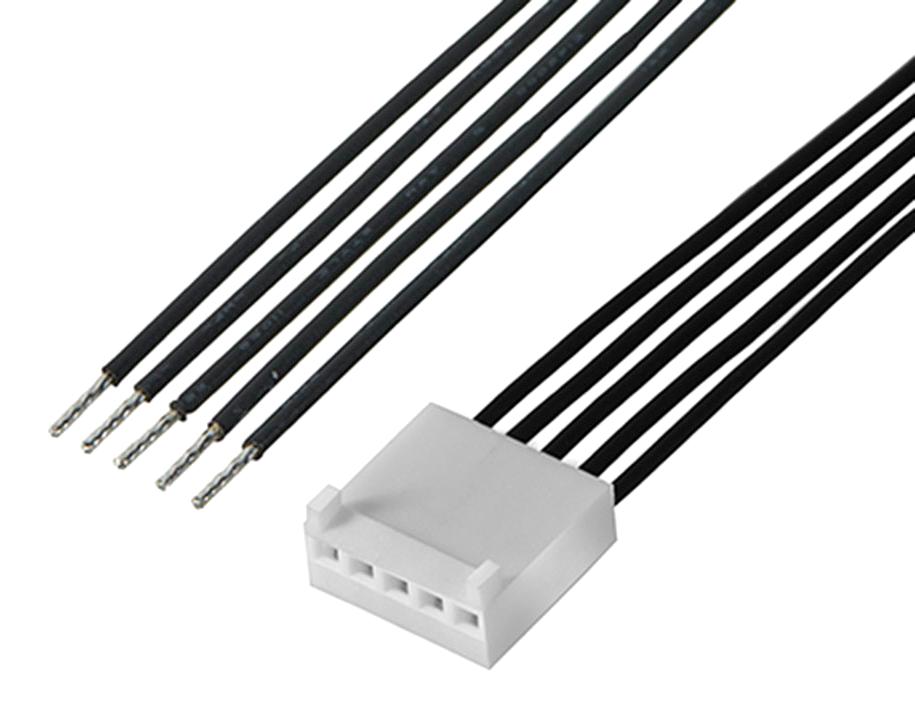

MOLEX 2177971051 KK 254 Cable Assembly
The MOLEX 217797-1051 is a KK 254-to-Pigtail off-the-shelf cable assembly designed for versatile connectivity solutions. This assembly offers a 150mm length and 5 circuits, making it suitable for various applications requiring a compact and reliable connection. The 2.54mm pitch mating interface ensures compatibility with KK 254 PCB headers. Constructed with brass and plated with tin, this cable assembly provides excellent conductivity and durability. It is RoHS compliant and features a low-halogen status, aligning with environmental standards.
MOLEX 2177971051 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: KK 254-to-Pigtail
- Cable Length: 150.00mm
- Circuits (Loaded): 5
- Color: Natural (White)
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Material - Resin: Nylon
- Net Weight: 4.227/g
- Number of Rows: 1
- Pitch - Mating Interface: 2.54mm
- Single Ended: No
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
