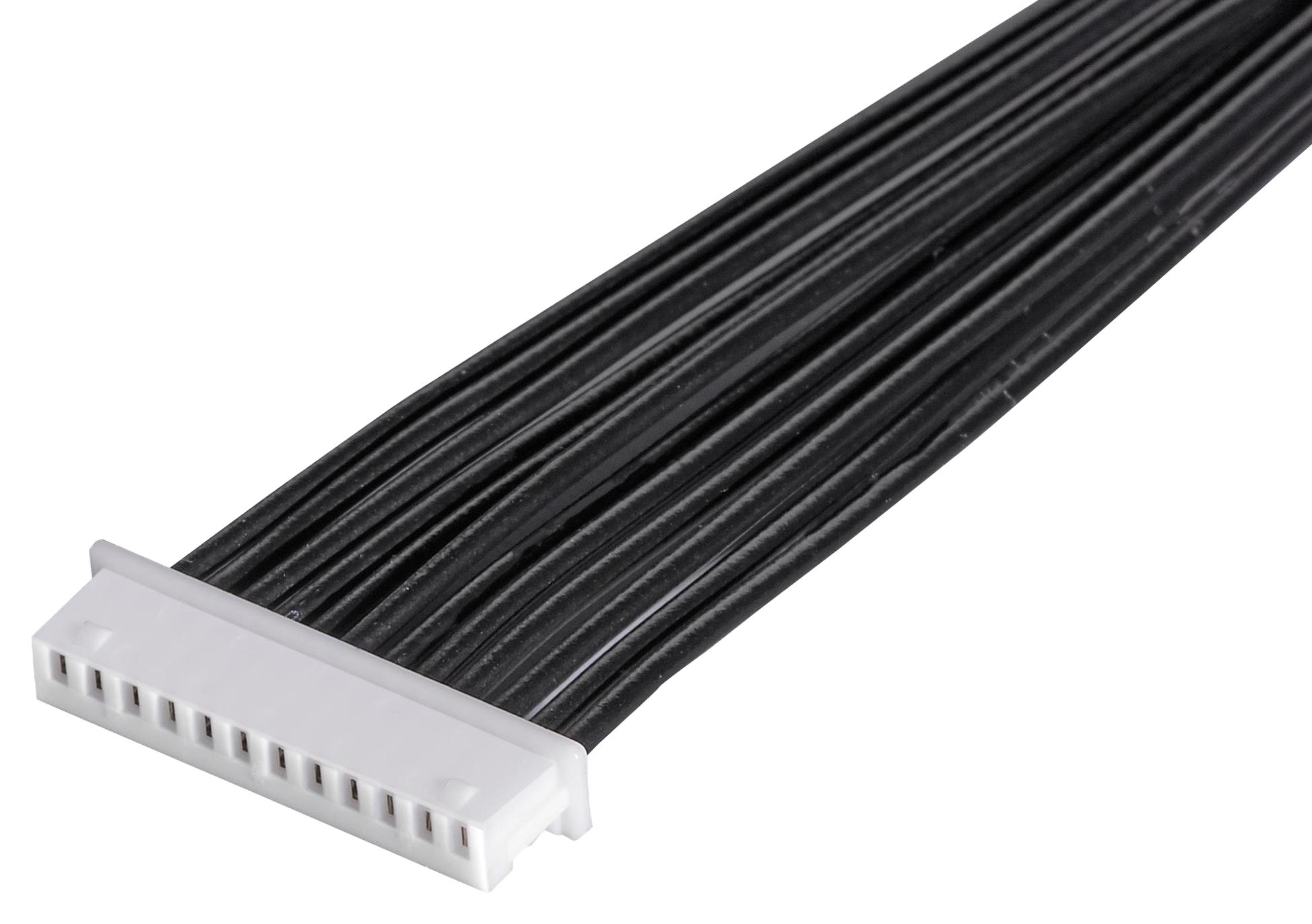

MOLEX 151341202 PicoBlade Cable Assembly
The MOLEX 15134-1202 is a PicoBlade-to-PicoBlade off-the-shelf cable assembly designed for signal, wire-to-board, and wire-to-wire applications. It offers a convenient pre-terminated solution with a 150mm length and 12 circuits, utilizing phosphor bronze terminals with tin plating for reliable electrical contact. The natural polyester resin overmold provides insulation and protection, making it suitable for various industrial and commercial applications where compact and reliable connectivity is required. It is RoHS compliant and features a dual-ended female-female configuration.
MOLEX 151341202 PicoBlade Cable Assembly Specifications:
- overview: PicoBlade Connector System
- product_family: Cable Assemblies
- series: 15134
- application: Signal, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- overmolded: No
- cable_length: 150.00mm
- circuits_loaded: 12
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight_g: 3.470
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048, PicoBlade Plug Housing 51047
