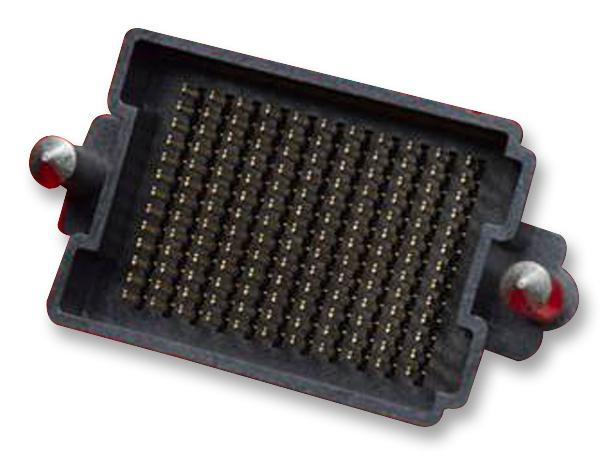

MOLEX 458302211 HD Mezz Mezzanine Connector
The MOLEX 45830-2211 is a high-density mezzanine connector system designed for demanding board-to-board applications. With 143 circuits and a compact 10.00mm unmated height, it offers a space-saving solution while maintaining reliable signal integrity. The connector features a 1.20mm pitch and tin plating, ensuring excellent electrical performance and durability. It is RoHS compliant and suitable for a wide range of industrial and commercial applications requiring robust and secure connections.
MOLEX 458302211 HD Mezz Mezzanine Connector Specifications:
- Overview: HD Mezz Mezzanine Connector System
- Description: 1.20mm by 2.00mm Pitch HD Mezz Plug, 143 Circuits, 10.00mm Unmated Height, 11 Rows, Tin (Sn) Plating
- Circuits (Loaded): 143
- Circuits (maximum): 143
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Pitch - Mating Interface: 1.20mm
- Pitch - Termination Interface: 1.20mm
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 250V AC
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: High Performance Alloy (HPA)
- Unmated Height: 10.00mm
- Number of Rows: 11
- PCB Locator: Yes
- PCB Retention: Yes
- Operating Temperature Range: -55° to +105°C
- Mates With: 45802 HD Mezz Receptacle
- Product Family Series: 45830
- RoHS Compliant: Yes
- Halogen-Free Status: Low-Halogen
- Lead-freeProcess Capability: REFLOW
- Process Temperature max. C: 260
- Duration at Max. Process Temperature (seconds): 020
- Max. Cycles at Max. Process Temperature: 002
