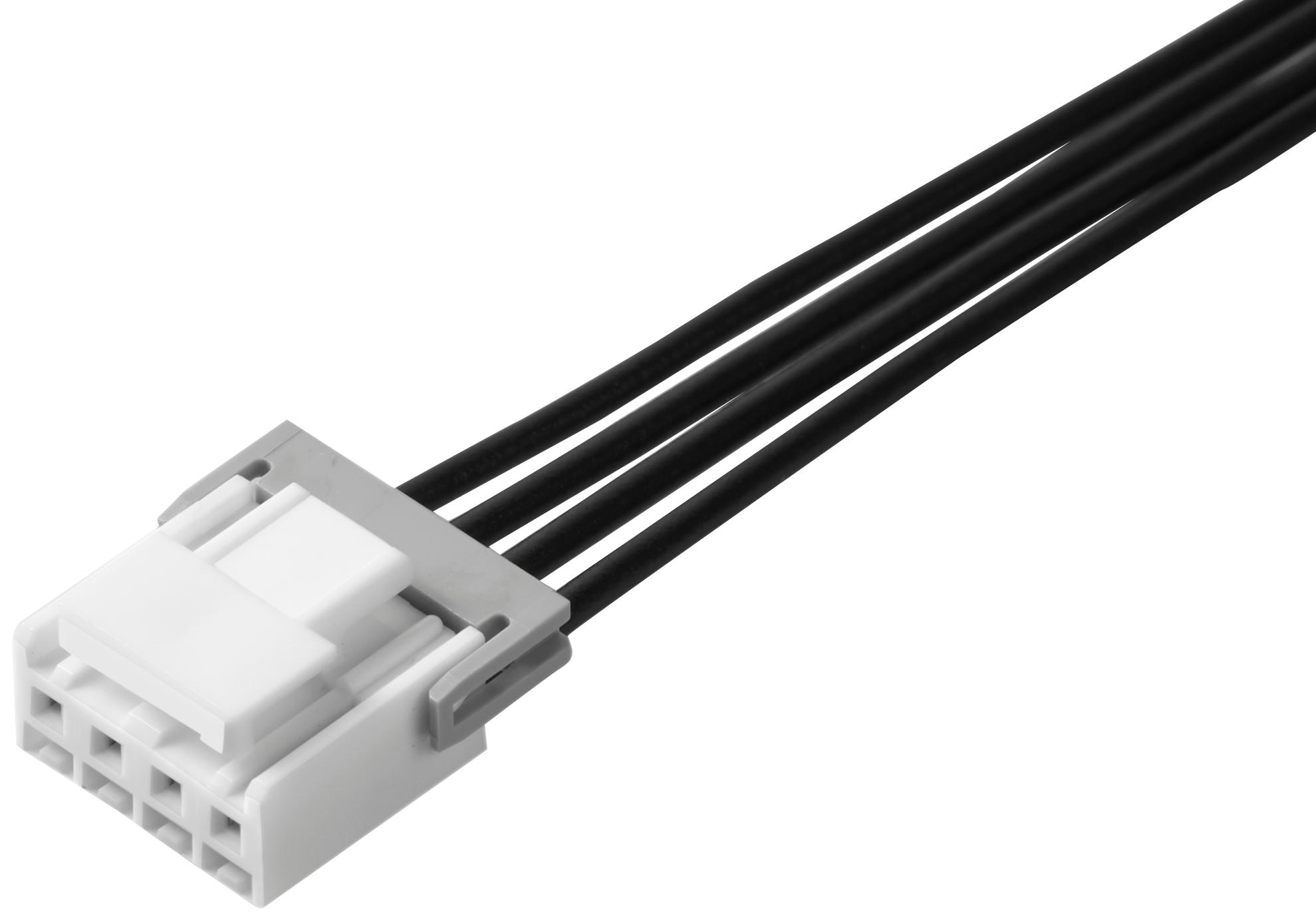

MOLEX 151370405 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0405 is a Mini-Lock wire-to-board connector assembly, part of the 15137 series. This connector offers a compact and reliable solution for signal transmission in various applications. It features a female-female configuration, a 2.50mm mating pitch, and is designed for wire-to-board connectivity. The natural resin color and robust construction make it suitable for demanding industrial environments. It is RoHS compliant and supports a maximum voltage of 250V AC (RMS)/DC.
MOLEX 151370405 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 4
- cable_length: 450.00mm
- gender: Female-Female
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- voltage_maximum: 250V AC (RMS)/DC
- wire_size_awg: 22
- wire_cable_type: UL 1061
- termination_interface_style: Crimp or Compression
- single_ended: No
- net_weight: 11.270/g
- packaging_type: Bag
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
Buy the 15137-0405 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0405 Mini-Lock Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370405?
You can click on the BUY or RFQ button to purchase 151370405 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370405?
You can download the 151370405 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370405?
MOLEX
