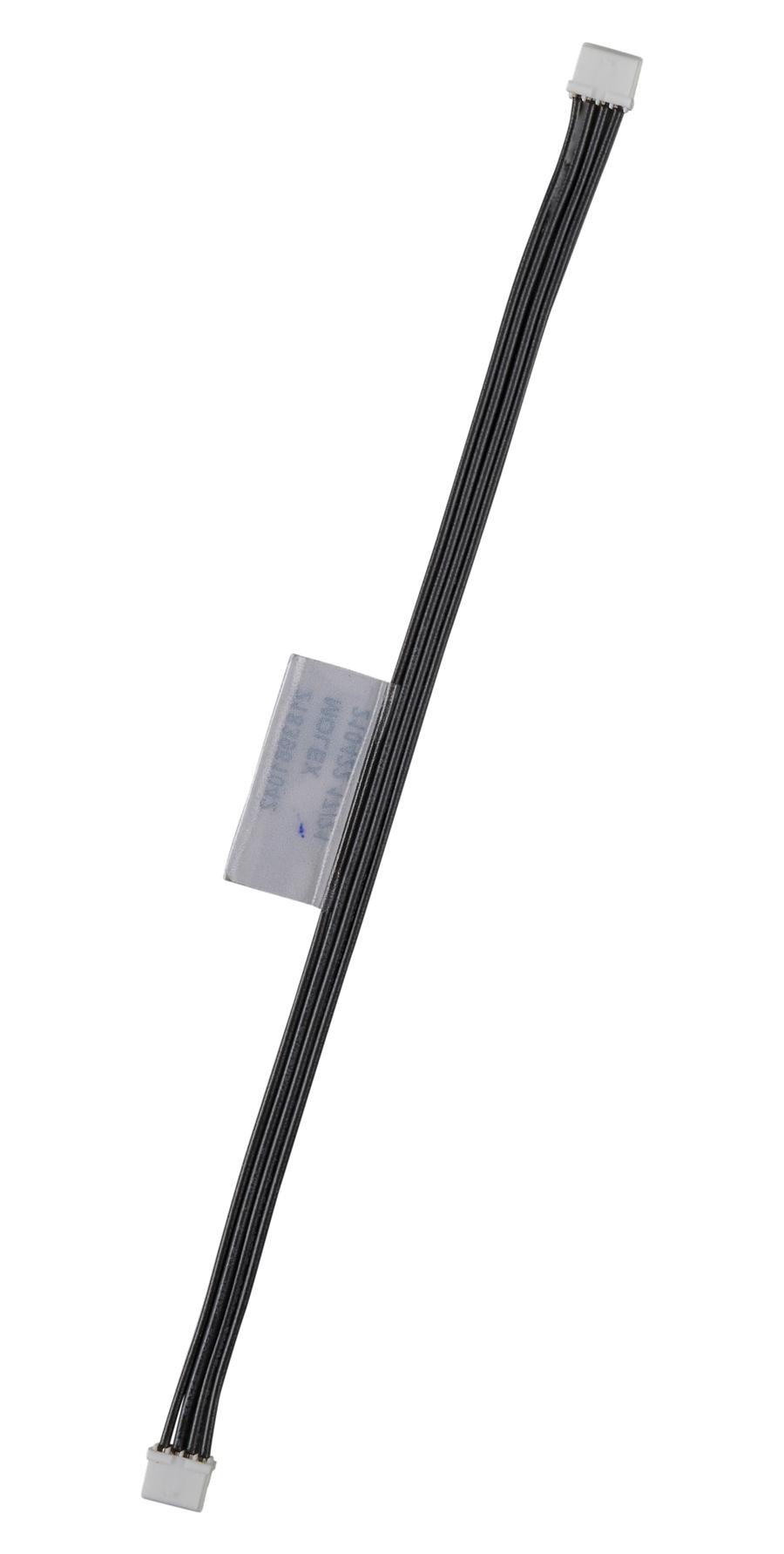

MOLEX 2183961040 Pico-SPOX Cable Assembly
The MOLEX 218396-1040 is a Pico-SPOX wire-to-board connector system cable assembly. It offers a compact design with a 1.50mm pitch and is suitable for signal transmission in various applications, including wire-to-board and wire-to-wire connections. The assembly features a natural resin color, phosphor bronze material, and tin plating for reliable performance. It is RoHS compliant and designed for secure and efficient data transfer.
Authorized Distributors
Source:Mouser Electronics
Part No:218396-1040
Stock:2561
Inv Date:05-30-2026
Price: Unit price: $1.91
Buy/RFQ:
Source:RS Americas, Inc
Part No:218396-1040
Stock:0
Inv Date:05-29-2026
Price: Unit price: $1.79
Buy/RFQ:
Source:Master Electronics
Part No:218396-1040
Stock:251
Inv Date:05-29-2026
Price: Unit price: $1.672
Buy/RFQ:
Source:Onlinecomponents.com
Part No:218396-1040
Stock:251
Inv Date:05-29-2026
Price: Unit price: $1.672
Buy/RFQ:
MOLEX 2183961040 Pico-SPOX Cable Assembly Specifications:
- overview: Pico-SPOX Wire-to-Board Connector System
- product_family: Cable Assemblies
- series: 218396
- application: Signal, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector
- product_name_description: Pico-SPOX-to-Pico-SPOX Off-the-Shelf (OTS) Cable Assembly
- cable_length: 50.00mm
- circuits_loaded: 4
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating: Tin (Sn)
- material_resin: Nylon
- net_weight: 0.880/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.50mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.95-1.20mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_maximum_per_contact: 2.5A
- voltage_maximum: 250V
- upc: 195842352056
