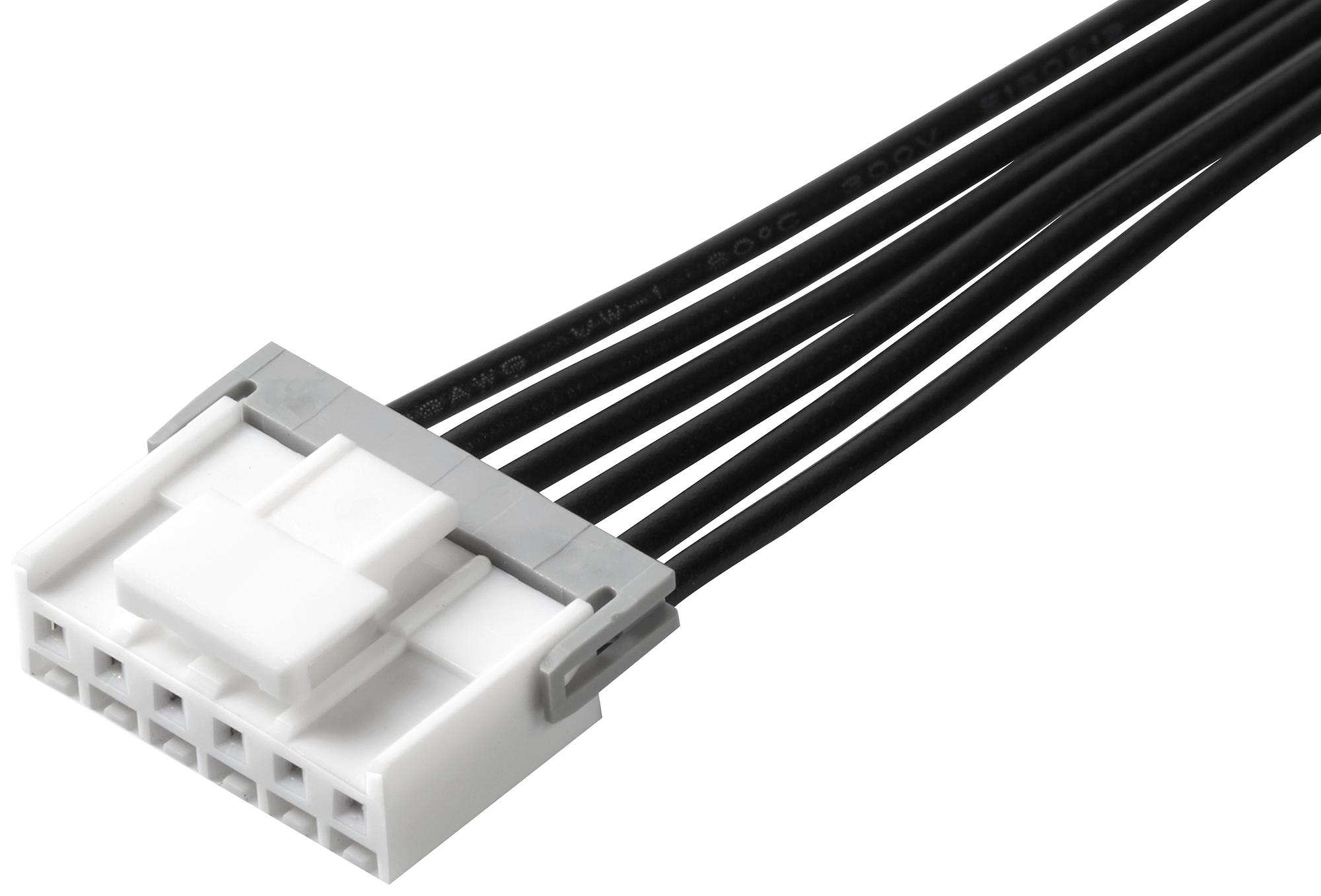

MOLEX 151370500 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0500 Mini-Lock wire-to-board connector assembly provides a reliable connection solution for signal transmission in diverse industrial settings. This connector features a female-female configuration, a 50.00mm length, and a 2.50mm pitch, ensuring compatibility with a range of applications. Constructed with copper alloy and plated with matte tin for both mating and termination, it offers excellent conductivity and durability. The natural polyester resin overmold enhances insulation and protection. This assembly is RoHS compliant and ideal for applications requiring a robust and compact wire-to-board connection.
MOLEX 151370500 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 5
- cable_length: 50.00mm
- plating_min_mating: 0.889µm
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- material_resin: Polyester
- voltage_maximum: 250V AC (RMS)/DC
- wire_size_awg: 22
- wire_cable_type: UL 1061
- net_weight: 3.880/g
- packaging_type: Bag
- single_ended: No
- termination_interface_style: Crimp or Compression
- color_resin: Natural
Buy the 15137-0500 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0500 Mini-Lock Wire-to-Board Connector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370500?
You can click on the BUY or RFQ button to purchase 151370500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370500?
You can download the 151370500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370500?
MOLEX
