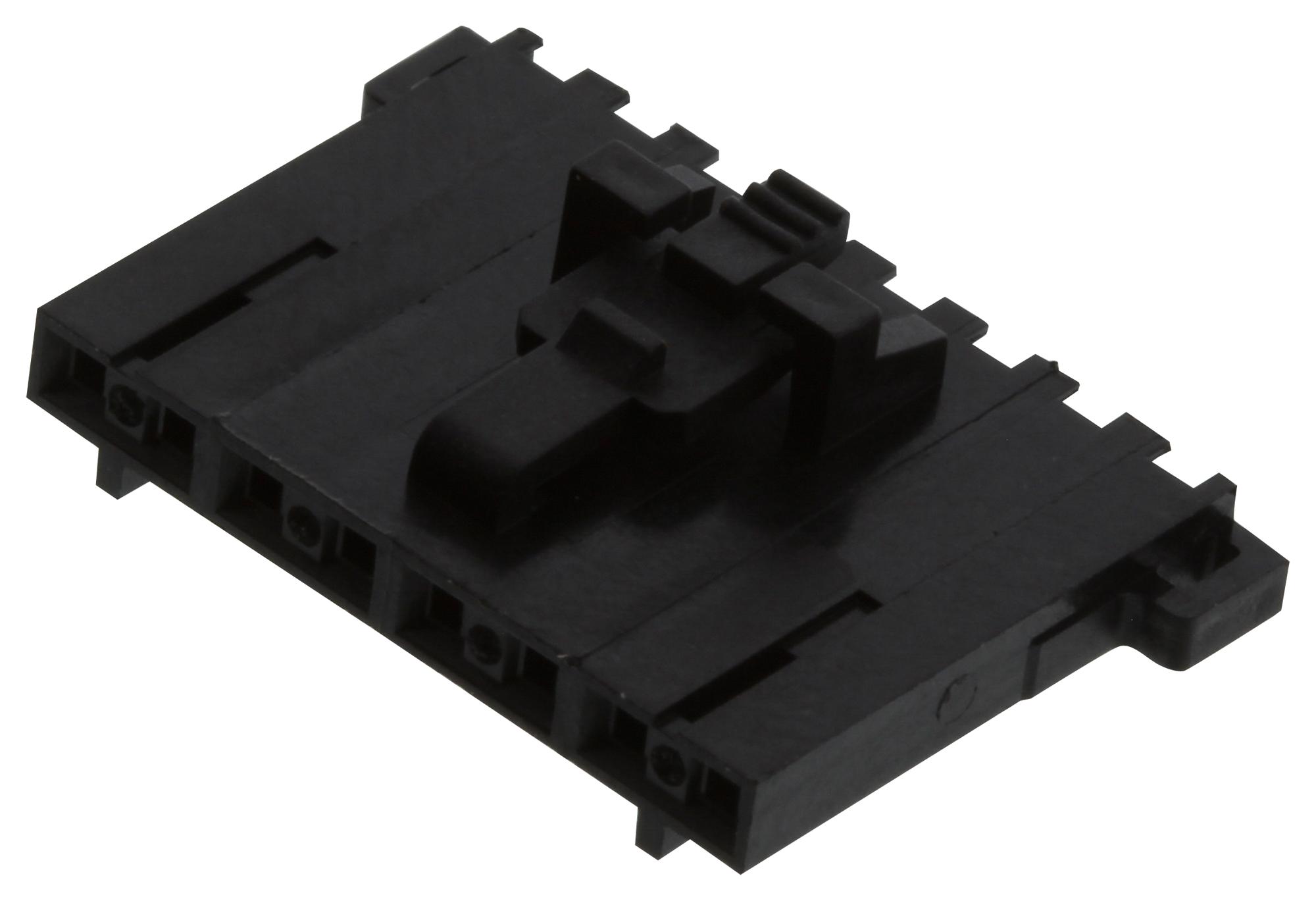

MOLEX 50579708 SL Crimp Housing
The MOLEX 50-57-9708 SL Crimp Housing is a robust and reliable solution for wire-to-board connections in various industrial applications. Designed as part of the SL Modular Connectors family, this housing provides a secure and efficient connection with a positive latch mechanism. It accommodates 8 circuits and is constructed from polyester alloy, ensuring durability and resistance to environmental factors. Compatible with SL TPA series housings and specific crimp terminals, this housing is ideal for applications requiring a compact and dependable connection.
MOLEX 50579708 SL Crimp Housing Specifications:
- overview: SL Modular Connectors
- description: SL Crimp Housing, Single Row, Version N, TPA with Positive Latch, 8 Circuits, Black
- product_family: Crimp Housings
- series: 70066
- application: Signal, Wire-to-Board
- circuits_maximum: 8
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Polyester Alloy
- net_weight_g: 0.709
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.54mm
- stackable: No
- temperature_range_operating_c: -40° to +105°C
- engineering_number: 70066-0392
- elv_compliant: Yes
- rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: 70018, 70543, 70545, 70553, 70555, 70107, 70541, 70551, 70634
- use_with: SL Crimp Terminal 70058, 71851, TPA for SL TPA series housings 738380008
