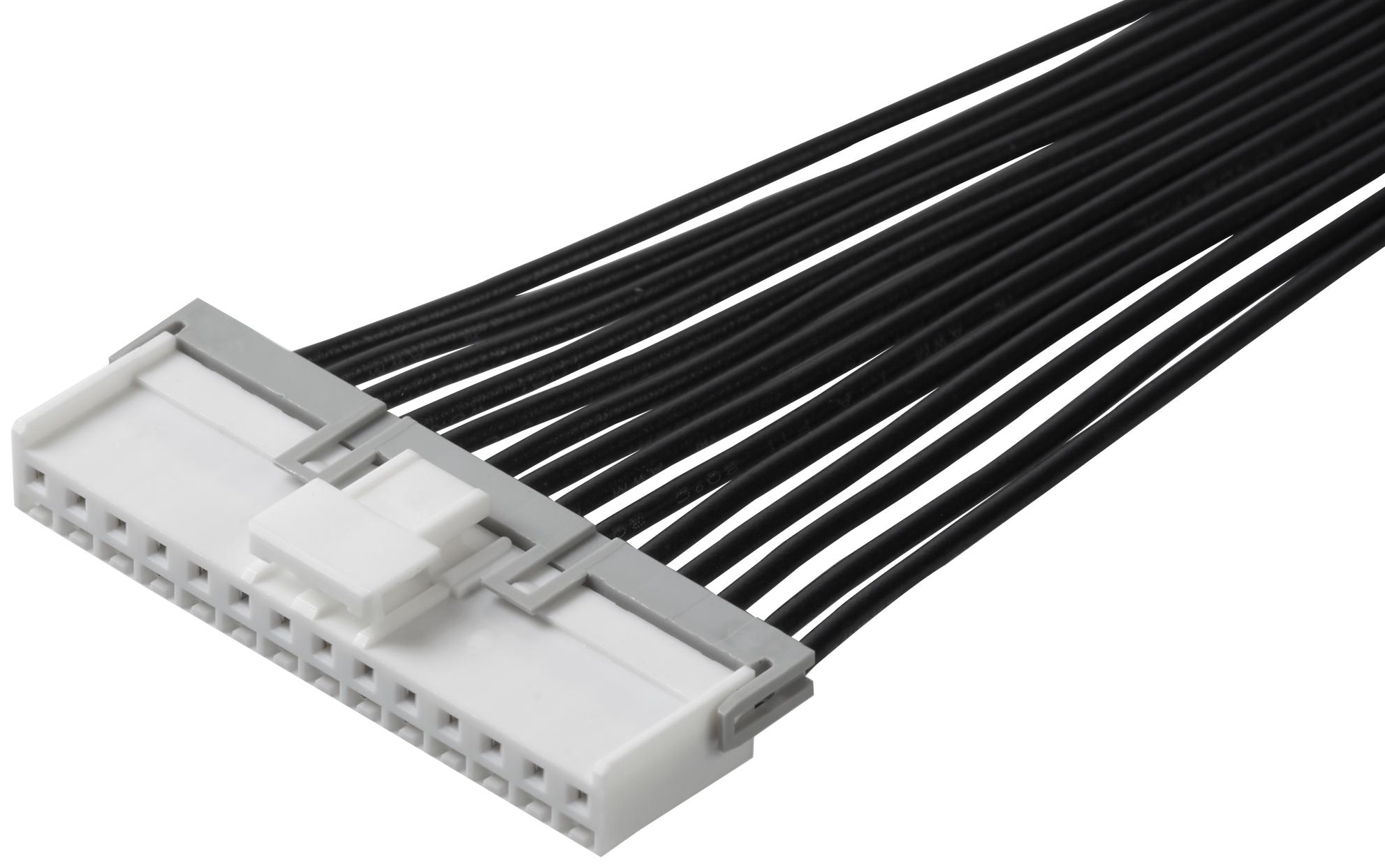

MOLEX 151371403 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-1403 is a Mini-Lock wire-to-board connector system designed for signal transmission in various industrial applications. This cable assembly provides a robust and reliable connection between boards and wires, featuring a 2.50mm pitch, female-female configuration, and a 300mm length. Its natural resin construction and copper alloy components ensure durability and optimal performance. It is RoHS compliant and suitable for applications requiring a compact and efficient wire-to-board solution.
MOLEX 151371403 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 300.00mm
- circuits_loaded: 14
- color_resin: Natural
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 26.860/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018 (27 June 2018)
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
- drawing_number: 151371403-000
