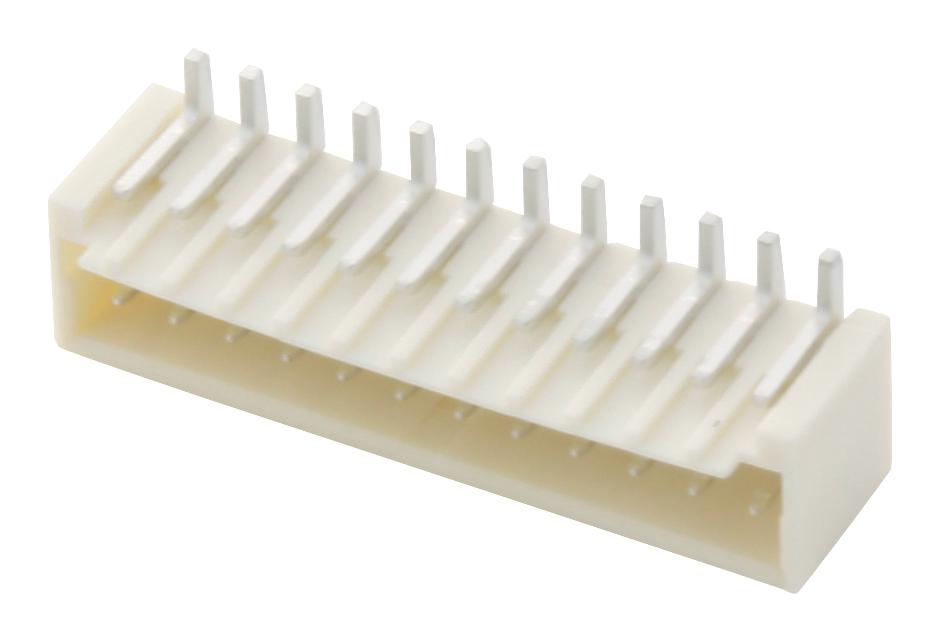

MOLEX 874371443 Wire-to-Board Connector
The Pico-SPOX Wire-to-Board Header is a reliable 1.50mm pitch surface mount connector designed for secure wire-to-board connections. Featuring a beige nylon housing, tin-plated contacts, and maximum durability of 14 mating cycles, it suits various electronic applications. This 14-circuit connector supports currents up to 2.5A and voltage up to 250V AC/DC, ensuring safe and efficient power and signal transfer. Its compact vertical design and shrouded, polarized mating interface enhance connection stability and safety. RoHS compliant, halogen-free, and UL certified for high-quality performance in demanding environments.
MOLEX 874371443 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 14
- Color - Resin: Beige
- Material - Resin: Nylon
- Material - Metal: Tin-plated contacts
- Durability: Up to 14 mating cycles
- Temperature Range: -55°C to +105°C
- Maximum Current per Contact: 2.5A
- Maximum Voltage: 250V AC/DC
- Orientation: Vertical
- Termination Interface: Surface Mount
- Shrouded: Yes
- Polarized to Mating: Yes
- RoHS Compliant: Yes
- Halogen-Free: No
- UL Certification: Yes
Buy the Buy Molex Pico-SPOX Wire-to-Board Part Number 874371443 Online
Secure your electronic projects with the Molex Pico-SPOX Wire-to-Board Connector, offering 14 circuits, 1.50mm pitch, surface mount design, and UL certification. This durable, high-performance connector withstands up to 14 mating cycles, provides reliable power transfer, and supports currents up to 2.5A at 250V AC/DC. Its shrouded, polarized, vertical design ensures stable connections and safety in a compact form factor. RoHS compliant and halogen-free, it's suitable for various industrial and consumer electronic applications. Order online now for fast, dependable delivery.
Order your Molex Series87437 Pico-SPOX connector today and ensure reliable, high-quality wire-to-board connections for your electronic projects.
