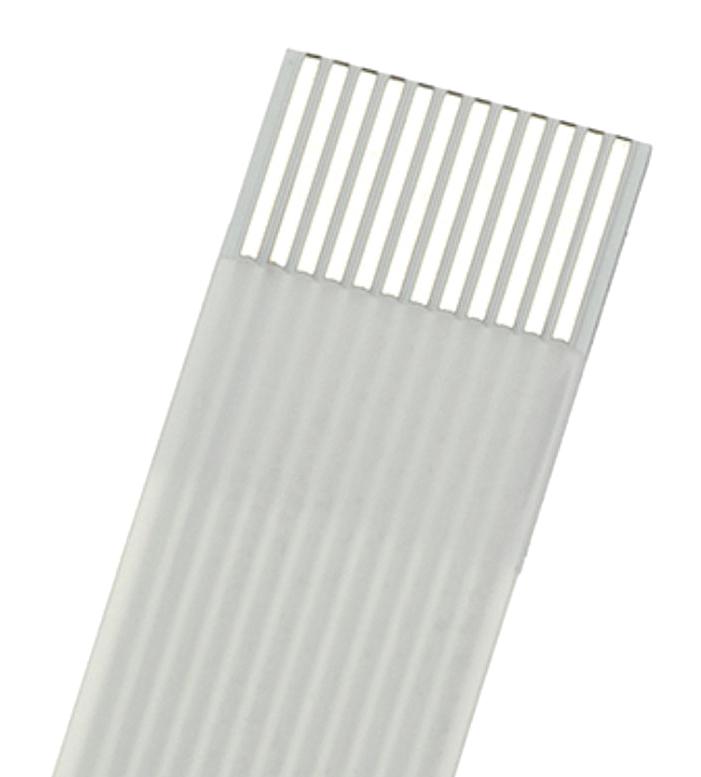

MOLEX 151660321 Premo-Flex FFC Jumper
The MOLEX 15166-0321 is a Premo-Flex FFC jumper designed for connecting flexible flat cables to circuit boards. This jumper features a 0.50mm pitch and 30 circuits, offering a compact and reliable connection solution. The same-side contacts (Type A) configuration simplifies assembly, while the tin plating ensures good solderability. It is suitable for applications requiring flexible and space-saving interconnects in consumer electronics, industrial equipment, and automotive systems.
MOLEX 151660321 Premo-Flex FFC Jumper Specifications:
- overview: Premo-Flex Cable Jumpers
- description: 0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 102.00mm Cable Length, Tin (Sn) Plating, 30 Circuits
- cable_length: 102.00mm
- circuits_loaded: 30
- plating_mating: Tin (Sn)
- net_weight: 1.000/g
- packaging_type: Bag
- pitch_mating_interface: 0.50mm
- operating_temperature_range: -40° to +105°C
- wire_size_awg: N/A
- wire_cable_type: Flat Flex Cable
- current_maximum_per_contact: 0.5A
- voltage_maximum: 60V AC
- comments: Contacts on the same side, Type A
- upc: 884982848191
- series: 15166
- product_family: Cable
- crimp_quality_equipment: Yes
- product_name_description: Premo-Flex FFC Jumper
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- mates_with: Easy-On FFC/FPC Connector: 524353033, 541043033, 524373033, 541323033, 5019513
