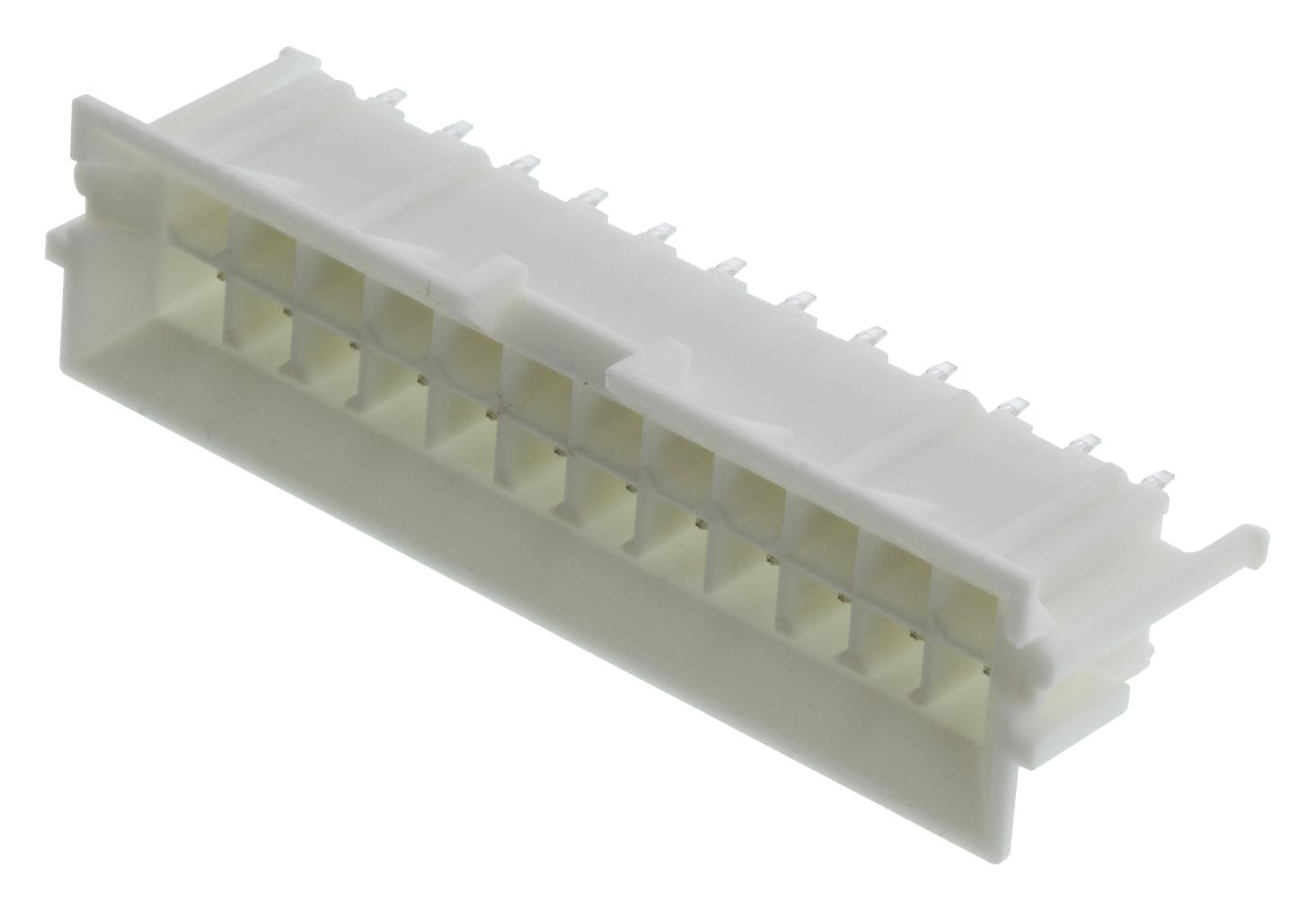

MOLEX 15246242 Mini-Fit BMI Connector
The Mini-Fit BMI Header is a versatile vertical connector with a 4.20mm pitch, dual row configuration, and snap-in plastic peg PCB lock. Designed for board-to-board and power applications, it supports up to 13A per circuit and a maximum voltage of 600V. Made from PA Polyamide Nylon 6/6 with UL 94V-0 flammability compliance, it features tin plating on brass contacts for reliable connections. With a recommended PCB thickness of 1.80mm and a durable design rated for up to 30 mating cycles, this connector ensures robust performance in demanding environments.
MOLEX 15246242 Mini-Fit BMI Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 24
- Current Rating: 13A per circuit
- Voltage Rating: 600V
- Material: PA Polyamide Nylon 6/6
- Flammability: UL 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Color - Resin: Natural (White)
- Net Weight: 5.341 grams
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.56mm
- PCB Thickness: 1.80mm
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- RoHS Compliant: Yes
- Max. Cycles at Max. Process Temperature: 1
- Process Temperature Max.: 240°C
Buy the Molex Series Mini-Fit BMI: 15246242
Enhance your electronic assemblies with the Molex Mini-Fit BMI connector, featuring a 4.20mm pitch and dual row configuration for power and board-to-board applications. Its sturdy PA Polyamide Nylon 6/6 construction with UL 94V-0 flammability rating guarantees safety and durability. Capable of handling 13A per circuit at 600V, this connector also supports up to 30 mating cycles. Easy to install with a PCB lock, it fits PCB thicknesses of 1.80mm, providing a reliable and high-performance solution for demanding technical projects.
Order your Molex Series Mini-Fit BMI header with 24 circuits today and ensure reliable power and board-to-board connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 15246242?
You can click on the BUY or RFQ button to purchase 15246242 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246242?
You can download the 15246242 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246242?
MOLEX
