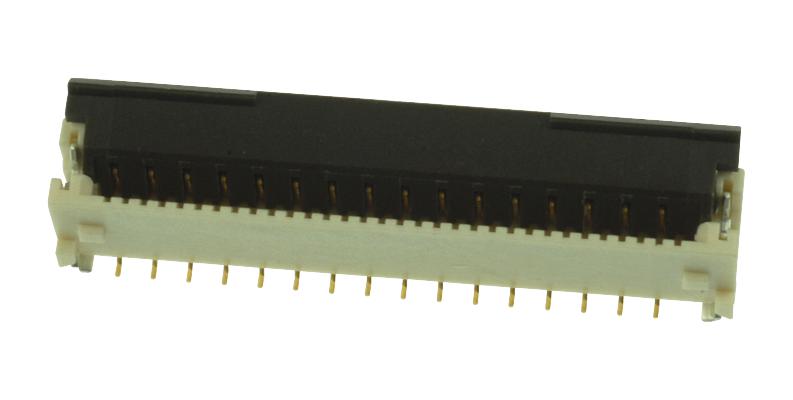

MOLEX 5019516000 Easy-On FFC/FPC Connector
The MOLEX 501951-6000 is a versatile FFC/FPC connector suitable for a wide range of applications requiring a compact and reliable connection for flexible flat cables. Its Easy-On™ design simplifies assembly, while the vertical orientation and surface mount capability make it ideal for space-constrained environments. Constructed with copper alloy contacts and tin-bismuth plating, this connector ensures excellent conductivity and durability. It is commonly used in consumer electronics, automotive systems, and industrial equipment where precise and secure FFC/FPC connections are essential.
MOLEX 5019516000 Easy-On FFC/FPC Connector Specifications:
- Circuits (Loaded): 60
- Circuits (maximum): 60
- Color - Resin: White
- Contact Position: N/A
- Durability (mating cycles max): 20
- Entry Angle: Vertical
- Flammability: 94V-0
- Mated Height: 4.05mm
- Material - Metal: Copper Alloy
- Material - Plating (Mating): Tin-Bismuth
- Material - Plating (Termination): Tin-Bismuth
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 674.501/mg
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 0.50mm
- Pitch - Termination Interface: 0.50mm
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Polarized to PCB: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -25°C to +85°C
- Termination Interface: Style: Surface Mount
- Wire/Cable Type: FFC/FPC
- Current - Maximum per Contact: 0.4A
- Voltage - Maximum: 50V AC (RMS)/DC
