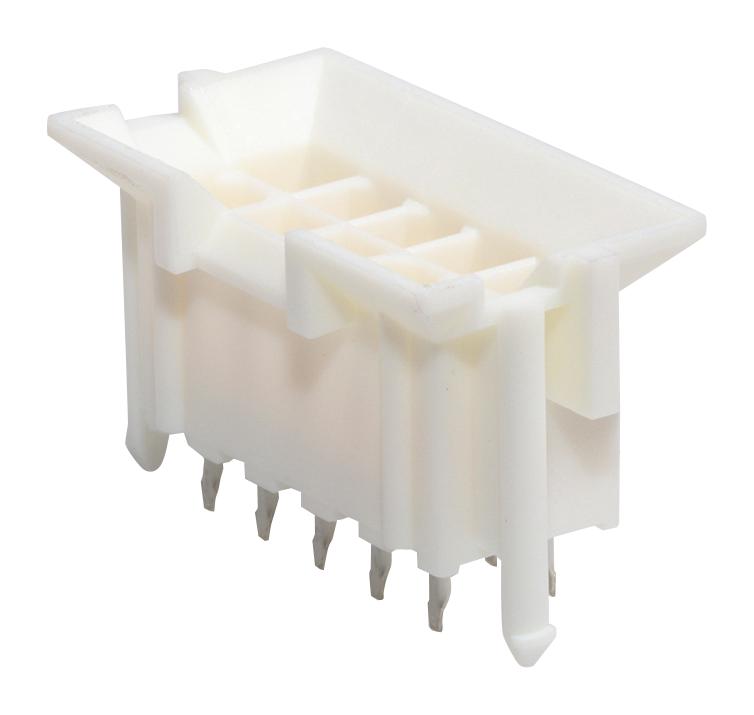

MOLEX 15286102 Mini-Fit Connector
The Mini-Fit BMI Header is a robust, 4.20mm pitch, dual-row, vertical connector designed for power and wire-to-board applications. Made from PA Polyamide Nylon 6/6 with UL 94V-0 flammability rating and select gold plating, it offers high durability with a maximum of 30 mating cycles. Rated for 13A current per circuit at up to 600V, it features a snap-in plastic peg PCB lock, through-hole termination, and a temperature operating range of -40°C to +105°C. Suitable for low-halogen, RoHS compliant environments, it ensures reliable, high-performance connectivity in industrial and electronic systems.
MOLEX 15286102 Mini-Fit Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 10
- Material: PA Polyamide Nylon 6/6
- Flammability: UL 94V-0
- Contact Material: Brass
- Plating - Mating: 0.762um Gold
- Plating - Termination: 2.540um Tin
- Current Rating: 13A per circuit
- Voltage Rating: 600V
- Temperature Range: -40°C to +105°C
- Durability (Mating Cycles): Up to 30
- Termination Style: Through Hole
- Resin Color: Natural (White)
- Orientation: Vertical
- Net Weight: 2.520g
- Lock: Snap-in Plastic Peg
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Certification: UL, CSA
- Process Temperature Max: 240°C
- Operating Environment: Industrial, Electronic Systems
Buy the Molex Series Mini-Fit BMI: 15286102
Purchase the Molex Mini-Fit Connector online today for high-quality power and wire-to-board connections. Designed for applications requiring durability, reliable electrical performance, and compliance with RoHS and UL standards, this 4.20mm pitch dual-row connector features a snap-in plastic peg PCB lock, up to 30 mating cycles, and a current capacity of 13A per circuit. Ideal for industrial, power, and electronic systems, it offers superior performance and easy installation. Make your electronic designs reliable and efficient by ordering online now for fast delivery and competitive pricing.
Get Molex 15286102 today—built for reliable power transmission and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 15286102?
You can click on the BUY or RFQ button to purchase 15286102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15286102?
You can download the 15286102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15286102?
MOLEX
