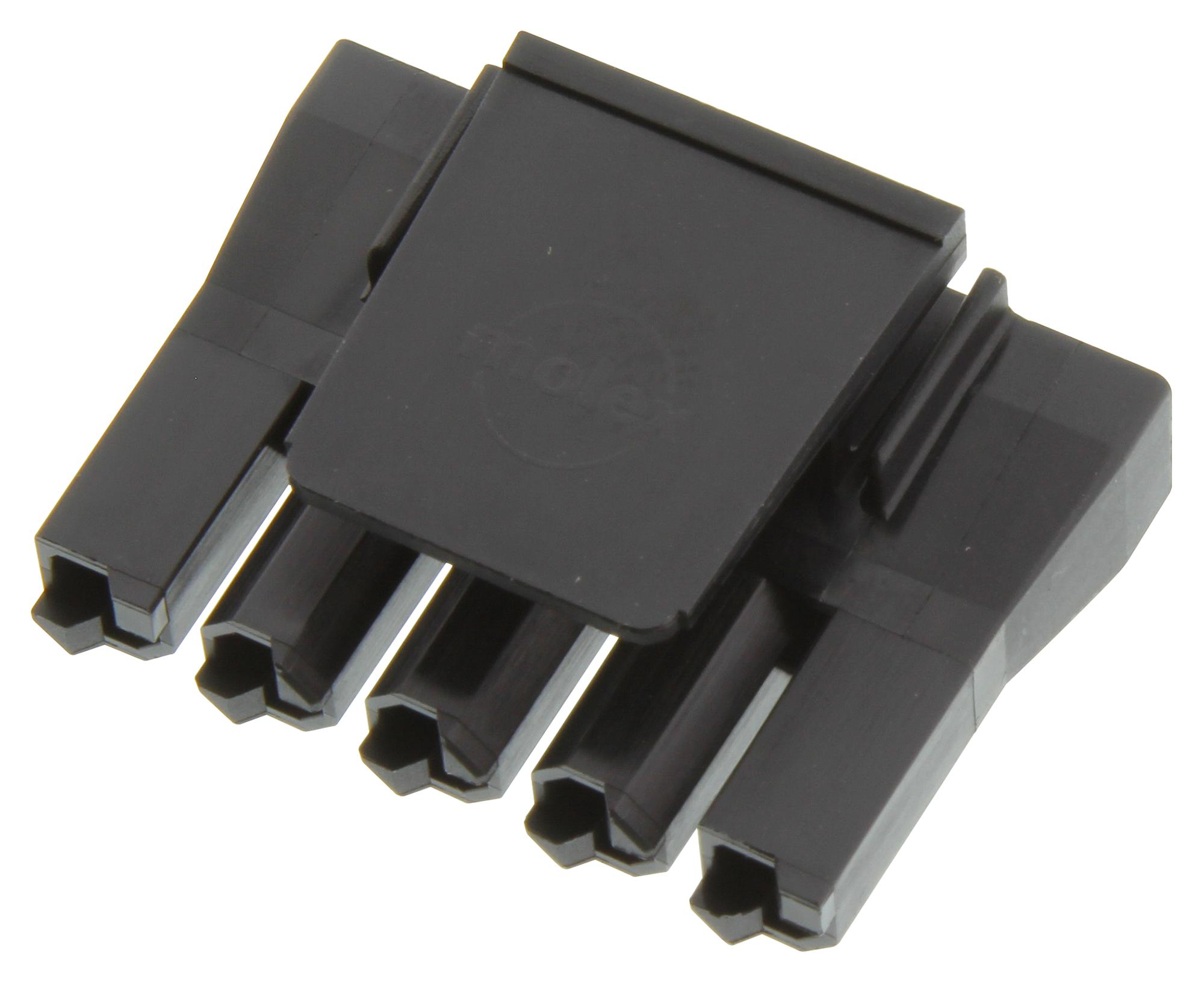

MOLEX 1726722005 Power Receptacle
The Super Sabre connector system features a 7.50mm pitch receptacle crimp housing designed for power and wire-to-board applications. It is UL 94V-0 flame-retardant, RoHS compliant, halogen-free, and suitable for operating temperatures from -40°C to +125°C. The housing is made of durable nylon resin, available in black, and supports up to five circuits with high current capacity of 34.0A per contact. It is compatible with various headers and terminals, ensuring reliable electrical connections in industrial and electronic systems.
MOLEX 1726722005 Power Receptacle Specifications:
- Pitch - Mating Interface: 7.50mm
- Number of Circuits: 5
- Color: Black
- Material - Resin: Nylon
- Flammability: UL 94V-0
- Temperature Range - Operating: -40°C to +125°C
- Current - Maximum per Contact: 34.0A
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Net Weight: 4.070g
- Packaging: Carton
- Gender: Receptacle
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Stackable: No
- Glow-Wire Capable: No
- Agency Certifications: UL, CSA
Buy the Molex Series Super Sabre Power Receptacle: 1726722005
Purchase the Molex Series Super Sabre power receptacle online today for your power and wire-to-board needs. This 7.50mm pitch crimp housing is UL 94V-0 flame-retardant, RoHS compliant, and made from durable nylon resin. It supports up to five circuits with a maximum of 34.0A per contact, ensuring safe and reliable electrical connections for a wide range of industrial, electronic, and power applications. Equipped with locking features, it provides secure mating for demanding environments.
Order your Molex Series Super Sabre 1726722005 receptacle today and experience reliable, high-current connections for industrial and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 1726722005?
You can click on the BUY or RFQ button to purchase 1726722005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1726722005?
You can download the 1726722005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1726722005?
MOLEX
