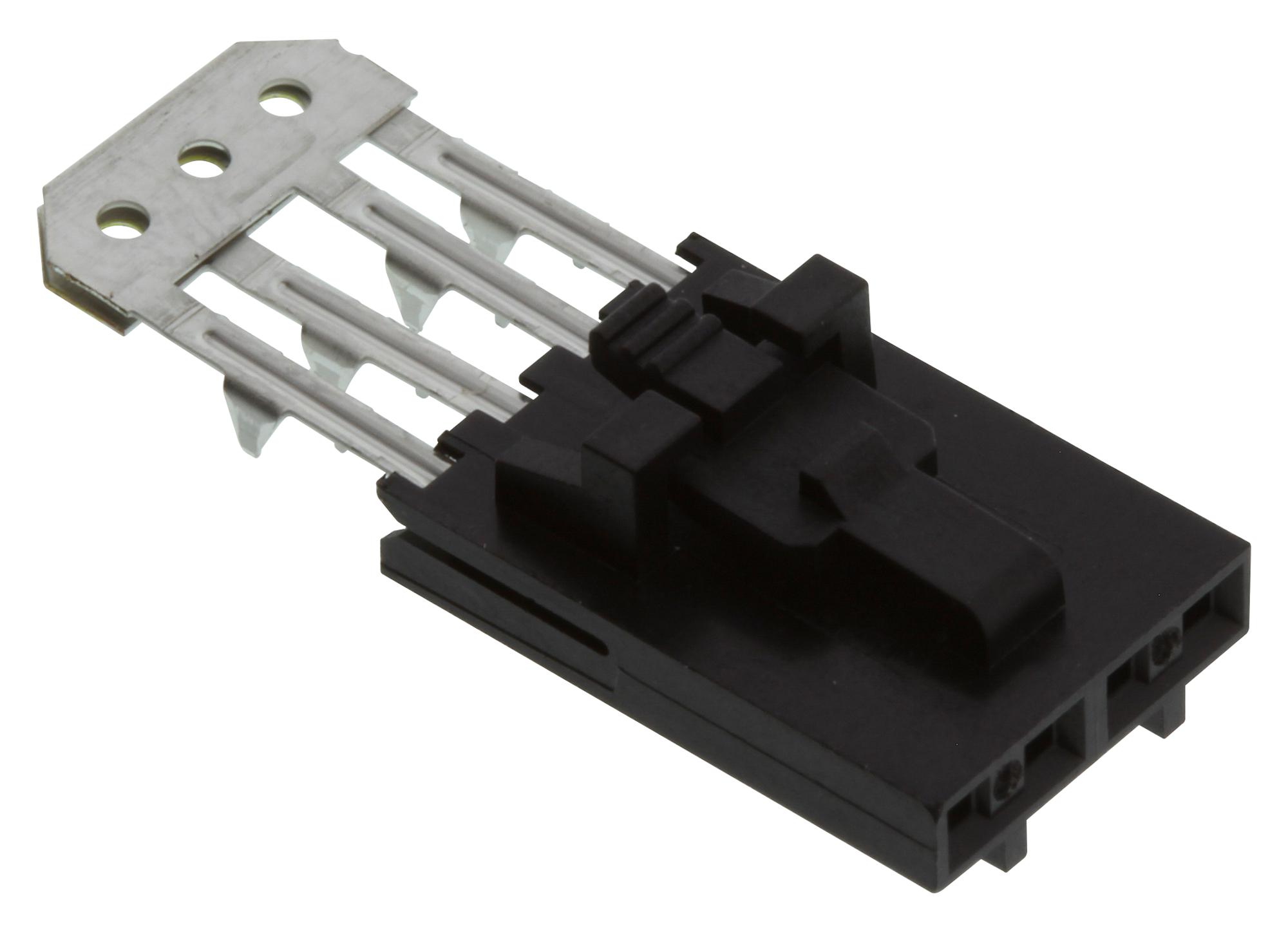

MOLEX 15474043 FFC FPC Connector
The Molex SL Single Row Female Receptacle with 4 circuits is a high-quality, RoHS-compliant connector designed for FFC/FPC applications. It features a durable design with Mating Gold plating, Tin termination, and a contact capacity of 1.0A or 2.0A at 250V. The connector operates within -40°C to +105°C, has a pitch of 2.54mm, and supports up to 50 mating cycles. It is ideal for compact electronic assemblies, offering reliable, stackable connections with a PCB thickness recommendation of 1.60mm to 2.40mm.
MOLEX 15474043 FFC FPC Connector Specifications:
- Series: 70430
- Product Family: FFC/FPC Connectors
- Number of Circuits: 4
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability: 50 mating cycles
- Flammability: 94V-0
- Operating Temperature Range: -40°C to +105°C
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Maximum Current per Contact: 1.0A, 2.0A
- Maximum Voltage: 250V
- PCB Thickness - Recommended: 1.60mm to 2.40mm
- Packaging: Tube
- Orientation: Vertical
- Wire / Cable Type: FFC / FPC
- Mating Compatibility: SL Headers 70541, 70543, 70545, 70551
- PC Tail Length: 3.30mm
- Operating Temperature: -40°C to +105°C
Buy the Buy Molex FFC FPC Connector Part Number 0015474043 Online
Enhance your electronic assemblies with the Molex FFC FPC Connector, featuring 4 circuits, gold-plated contacts, and a robust operating range. This stackable, high-performance connector supports up to 50 mating cycles, ensuring long-lasting, dependable connections. Its 2.54mm pitch and compatibility with various headers make it ideal for space-constrained applications. The connector’s UL and RoHS certifications guarantee compliance and safety. Perfect for consumer electronics, medical devices, and industrial automation, it delivers excellent performance and ease of installation for professional, reliable results.
Order your Molex Series70430 15474043 FFC/FPC connector today and ensure reliable, compact connections for your electronic projects with quality and durability.
Frequently Asked Questions
Where can I buy MOLEX 15474043?
You can click on the BUY or RFQ button to purchase 15474043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15474043?
You can download the 15474043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15474043?
MOLEX
