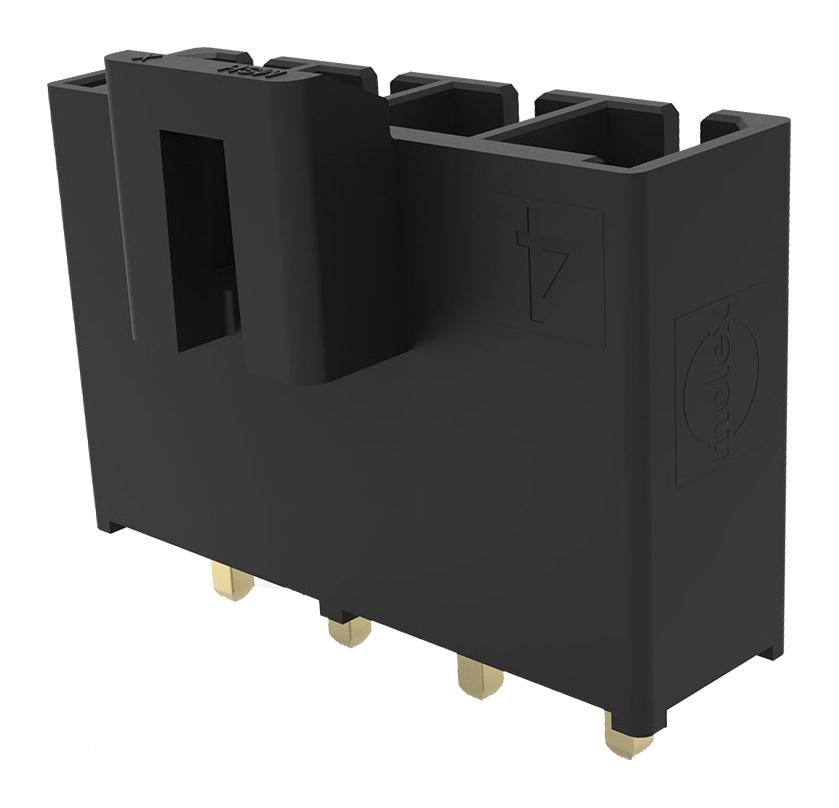

MOLEX 2002411124 Power Connector
The MOLEX Mega-Fit Power Connector is designed for high-power applications, delivering up to 25.0A per circuit. Its fully protected header pins and receptacle terminals, combined with unique keying options, ensure proper mating and reliable performance. The connector's power-dense design and sacrificial contacts enable efficient power transmission and hot plugging capabilities. It finds applications in home appliances, telecommunications, industrial machinery, and commercial vehicles, providing a robust and versatile solution for power connectivity needs.
MOLEX 2002411124 Power Connector Specifications:
- Pitch: 5.70mm
- Current (max): 25.0A
- Voltage (max): 600V
- Contact Resistance: 6 milliohms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min): 1,000 Megohms
- Contact Insertion Force (max): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max): 85N
- Mating Force (Tin plated max): 6.8N
- Mating Force (Gold plated max): 6.0N
- Unmating Force (Tin plated max): 6.5N
- Unmating Force (Gold plated max): 5.6N
- Durability (min): Maximum change from initial: Tin: 2 Megohms; Gold: 2 Megohms
- Housing Material: UL 94 V-0
- Contact Plating (Contact Area): Gold (Au) 0.38 or 0.76µ (15 or 30µ")
- Contact Plating (Solder Tail Area): Tin (Sn)
- Underplating: Nickel (Ni)
- Operating Temperature: -40 to +150°C
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- Mates With: Mega-Fit Receptacles, Plugs
- Terminal Used: Series 172063, 076823, 105418, 105417
- Designed In: Millimeters
- Halogen Free: Yes or No
