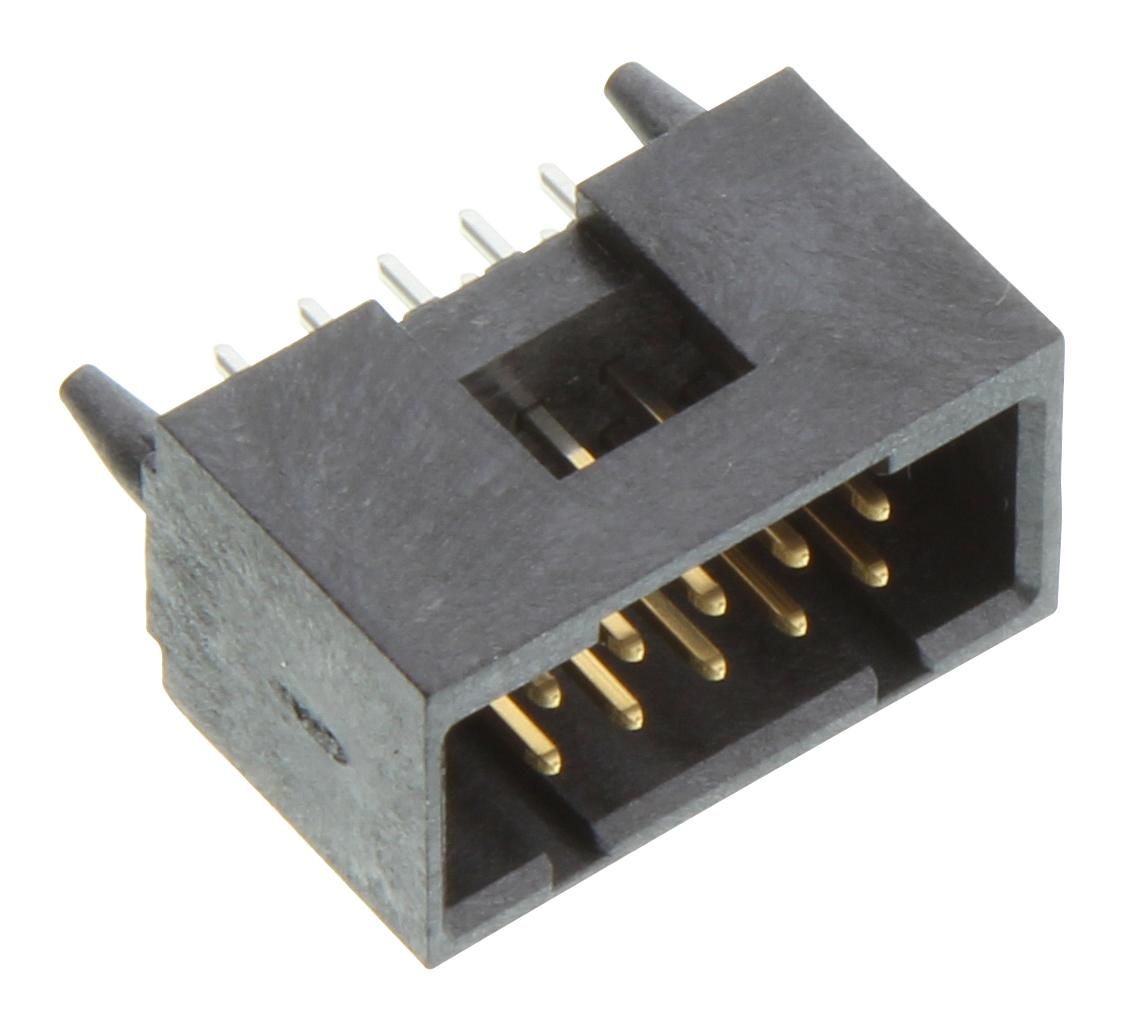

MOLEX 15477610 C-Grid Connector
This 2.54mm pitch C-Grid connector is a high-temperature, shrouded, through-hole, dual row, vertical header designed for wire-to-board applications. Featuring a 10-circuit configuration with 0.38µm gold selective plating and tin PC tail plating, it offers excellent electrical performance with a maximum current of 2.5A per contact and a voltage rating of 250V. CSA and UL certified, it is suitable for industrial and electronic device applications, providing reliable high-temperature operation from -55°C to +105°C. The connector is made of high-temperature thermoplastic with brass and phosphor bronze contacts, ensuring durability and secure connections.
MOLEX 15477610 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 10
- Max. Current per Contact: 2.5A
- Max. Voltage: 250V
- Material - Contacts: Brass, Phosphor Bronze
- Plating - Contacts: Gold
- Material - Body: High Temperature Thermoplastic
- Operating Temperature Range: -55°C to +105°C
- Termination Style: Through Hole
- Housing Color - Resin: Not specified
- PC Tail Length: 3.30mm
- PCB Thickness - Recommended: Not specified
- Flammability: UL Listed, CSA Certified
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Temperature Rating: -55°C to +105°C
- Contact Material: Brass, Phosphor Bronze
- Surface Mount Compatible: No
- Shrouded: Yes
- Stackable: No
- Guide to Mating Part: Not specified
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Package Type: Tube
- Agency Certifications: UL, CSA
Buy the Molex 15477610 – Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your electronic assembly with Molex's high-temperature C-Grid connector, featuring a 2.54mm pitch, 10 circuits, gold plating, and through-hole design. This durable connector is ideal for industrial, automation, and electronic device applications, supporting a maximum current of 2.5A per contact and a voltage of 250V. With UL and CSA certification, it withstands temperatures from -55°C to +105°C, ensuring reliable performance in challenging environments. Easily integrate this connector for secure, durable connections in your projects.
Buy Molex 15477610 now and experience unmatched reliability and performance in high-temperature wire-to-board connectivity.
Frequently Asked Questions
Where can I buy MOLEX 15477610?
You can click on the BUY or RFQ button to purchase 15477610 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15477610?
You can download the 15477610 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15477610?
MOLEX
