MOLEX 901303114 PCB Header
The C-Grid III Header is a high-quality PCB connector designed for signal applications and wire-to-board connections. Featuring a dual-row, right-angle, shrouded design with 14 circuits, it offers reliable mating with a durable lifespan of up to 30 cycles. Crafted from brass with tin over nickel plating, it ensures excellent electrical contact and corrosion resistance. Suitable for operating temperatures from -55°C to +125°C, the connector supports a maximum current of 3.0A per contact and a voltage of 350V. It comes in a black polyester resin housing with a 2.54mm pitch, making it ideal for precise and secure signal interconnections in electronic assemblies.
MOLEX 901303114 PCB Header Specifications:
- Number of Circuits: 14
- Orientation: Right Angle
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Surface Mount Compatible: No
- Shrouded: Closed Ends
- Lock to Mating Part: Yes
- Guide to Mating Part: None
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Operating Temperature Range: -55°C to +125°C
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Durability (mating cycles max): 30
- Flammability: 94V-0
- RoHS Compliant: Yes
- UL Certification: E29179
- CSA Certification: LR19980
- Packaging: Tray
- Physical Dimensions: PCB Tail Length 2.90mm, Net weight 1.988g

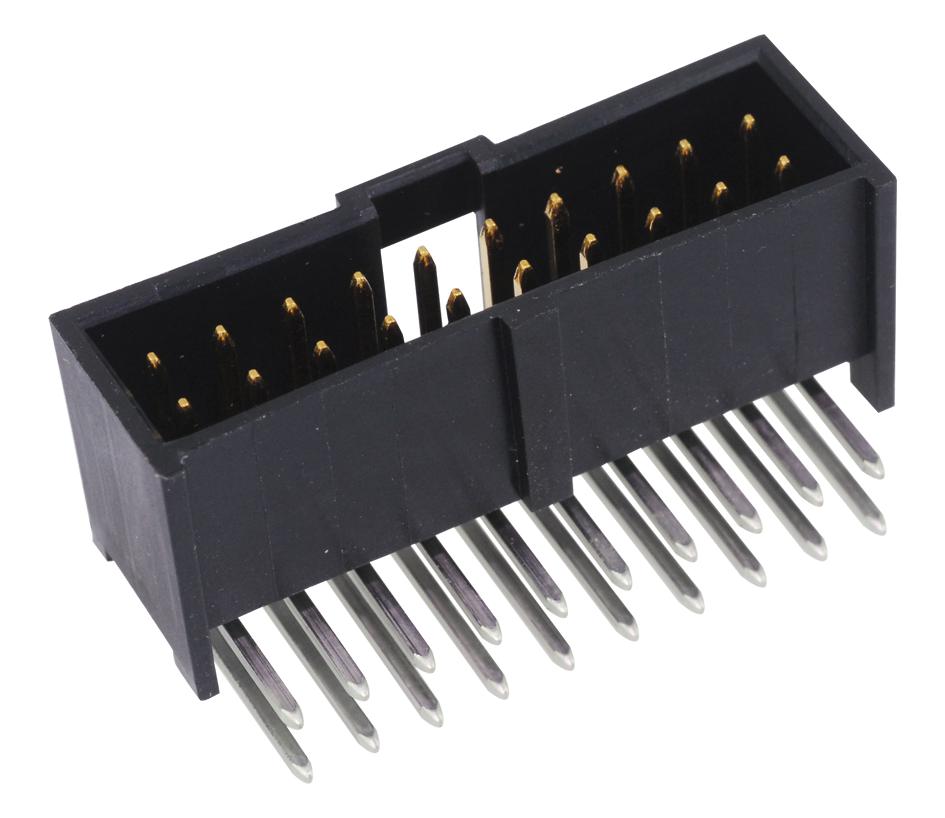

Buy the Buy Molex C-Grid III Part Number 901303114 Online
Purchase the Molex PCB Header, Series 90130, part number 901303114, online today and enhance your electronic assemblies with its durable, high-quality design. Featuring 14 circuits in a dual-row, right-angle configuration, this connector is ideal for signal wiring in demanding environments. Constructed from brass with tin over nickel plating, it supports a temperature range from -55°C to +125°C and a maximum current of 3A per contact. Its shrouded, black polyester housing ensures secure mating and reliable performance in your next project.
Order your Molex Series90130 C-Grid III 901303114 connector today and ensure reliable, high-performance signal connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 901303114?
You can click on the BUY or RFQ button to purchase 901303114 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901303114?
You can download the 901303114 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901303114?
MOLEX
