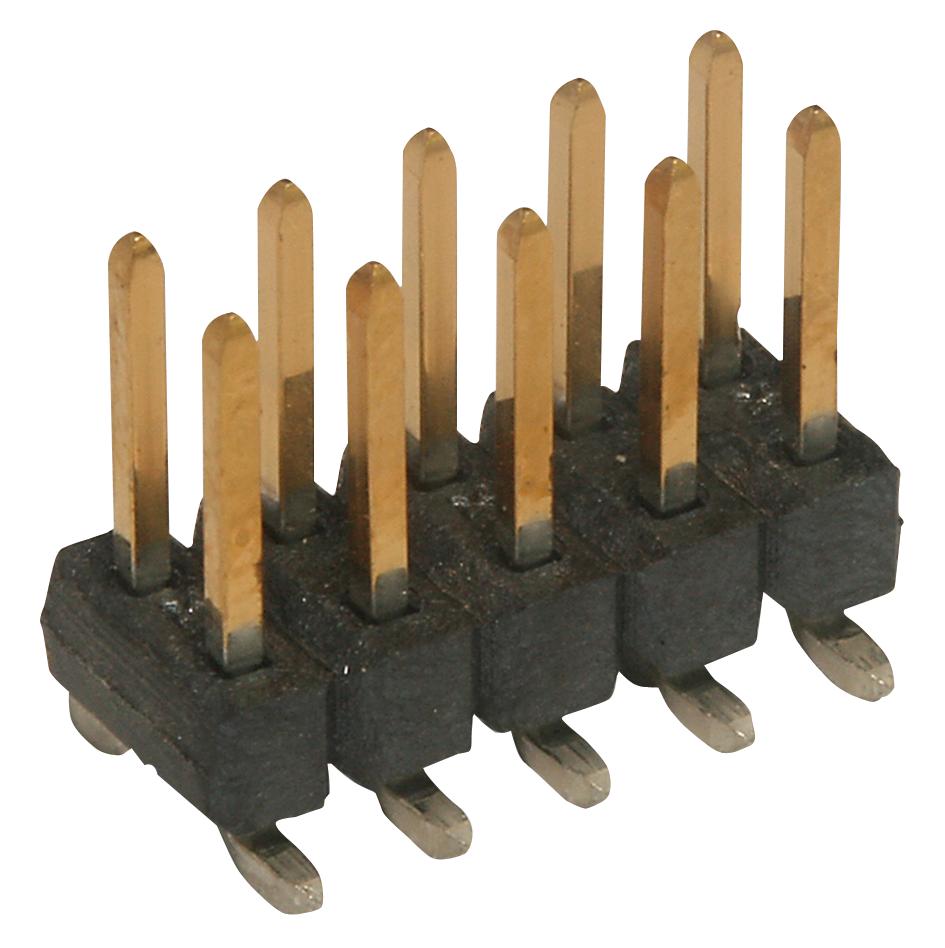

MOLEX 15910180 C-Grid Connector
This 2.54mm pitch C-Grid connector is a surface-mount, dual-row header designed for board-to-board signal applications. Made with phosphor bronze and gold-plated contacts, it ensures reliable electrical connections with high durability up to 50 mating cycles. Suitable for operating temperatures from -40°C to +105°C, it offers a current capacity of 3.0A per contact and a maximum voltage of 250V. The compact design features a vertical orientation, unshrouded, and is RoHS and Reach compliant, ideal for high-density electronic assemblies in industrial and consumer electronics.
MOLEX 15910180 C-Grid Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 18
- Circuits (Maximum): 18
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability (Mating Cycles Max): 50
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Physical Dimensions: 2.54mm pitch, vertical orientation, unshrouded, surface mount
- Process Capability: Reflow soldering
- Compliance: RoHS, Reach SVHC, Halogen-Free
- Product Family: C-Grid
- Application: Board-to-Board, Signal, Wire-to-Board
- Agency Certifications: UL, CSA
- Net Weight: 1.116g
Buy the Molex Series C-Grid 2.54mm Pitch Connector: 15910180
Secure your electronic assemblies with this high-quality Molex Series C-Grid connector, featuring a 2.54mm pitch, gold-plated contacts, and robust design. Perfect for board-to-board signal connections requiring reliable performance and easy reflow soldering. Its dual-row configuration and unshrouded, surface-mount design optimize space while maintaining durability up to 50 mating cycles. RoHS and Reach compliant, this connector ensures safe, environmentally friendly assembly in industrial, consumer, and automation applications. Easy to install, it supports high current and voltage, making your projects more reliable and efficient.
Order your Molex Series C-Grid 2.54mm Pitch Connector today and ensure reliable, high-density connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 15910180?
You can click on the BUY or RFQ button to purchase 15910180 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15910180?
You can download the 15910180 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15910180?
MOLEX
