MOLEX 15913064 Wire-to-Board Connector
The Molex SL Modular Connectors are 2.54mm pitch, wire-to-board headers designed for surface mount applications. They feature a low-profile, right-angle, single-row configuration with a 3.05mm pocket, shrouded design, and press-fit plastic peg for secure connections. With 6 circuits and tin plating, these connectors support up to 3.0A current per contact and operate within a temperature range of -40°C to +105°C. Certified compliant with UL and CSA standards, they are suitable for high-reliability electronic assemblies requiring compact, durable, and RoHS-compliant connections.
MOLEX 15913064 Wire-to-Board Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 6
- Maximum Circuits (Loaded): 6
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles Max): 25
- Temperature Range - Operating: -40°C to +105°C
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 3.0A
- Orientation: Right Angle
- Terminations: Surface Mount
- Shrouded: Yes
- Stackable: No

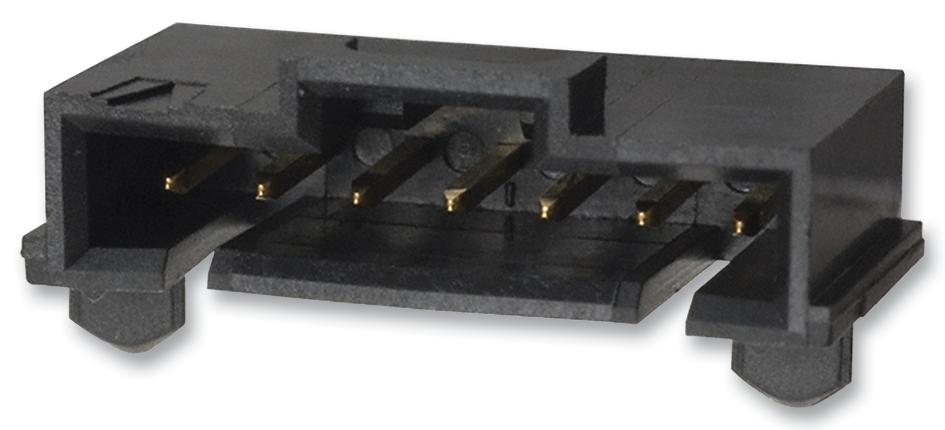

Buy the Molex Series SL Wire-to-Board Connector: 0015913064
Enhance your electronic projects with the Molex Wire-to-Board Connector. Featuring a 2.54mm pitch, low-profile design, and 6 circuits, this surface mount connector offers reliable and secure connections. Its tin-plated contacts ensure corrosion resistance, while the operating temperature range of -40°C to +105°C makes it suitable for various environments. Certified with UL and CSA, this durable connector is perfect for high-quality, compact, and RoHS-compliant electronic assemblies, ensuring excellent performance and longevity.
Get Molex 0015913064 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 15913064?
You can click on the BUY or RFQ button to purchase 15913064 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15913064?
You can download the 15913064 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15913064?
MOLEX
