MOLEX 2162731083 Datasheet & Stock

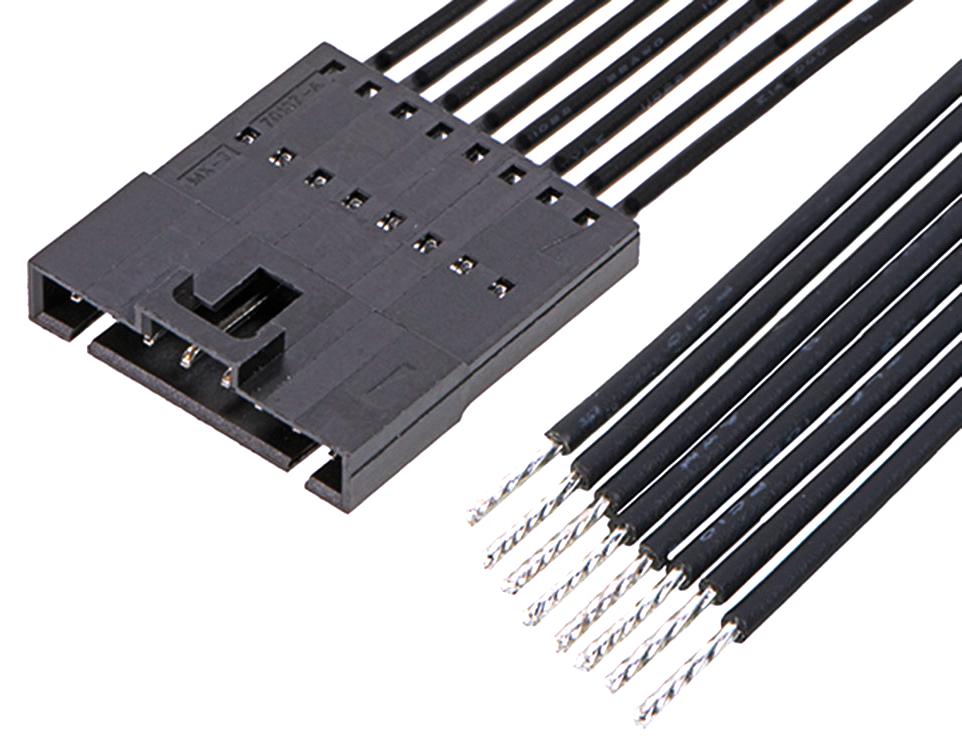

This off-the-shelf stackable linear (SL) positive lock discrete cable assembly supports both prototyping and mass production across various industries. It features discrete wire crimp, FFC, and IDT termination styles. The terminal provides two independent contact points, ensuring redundant current paths for enhanced electrical performance and reliability. A connector position assurance (CPA) lock secures the wire-to-wire and wire-to-board connections, preventing disengagement in high-vibration environments. Suitable for consumer, industrial, automotive, data and computing, commercial vehicle, medical, and telecommunications applications. The assembly includes options like male-to-pigtail configurations, split-peg PCB headers for stability during soldering, and a low-profile, stackable housing with both vertical and right-angle headers for flexible design. It complies with UL and CSA standards (UL file number E29179, CSA file number LR19980), supporting voltages up to 600V AC/DC and currents up to 3A. Made with a polyester alloy housing, phosphor bronze contacts with tin plating, it operates from -40°C to +105°C and is rated for up to 25 mating cycles.

View 2162731083Datasheet [pdf]
