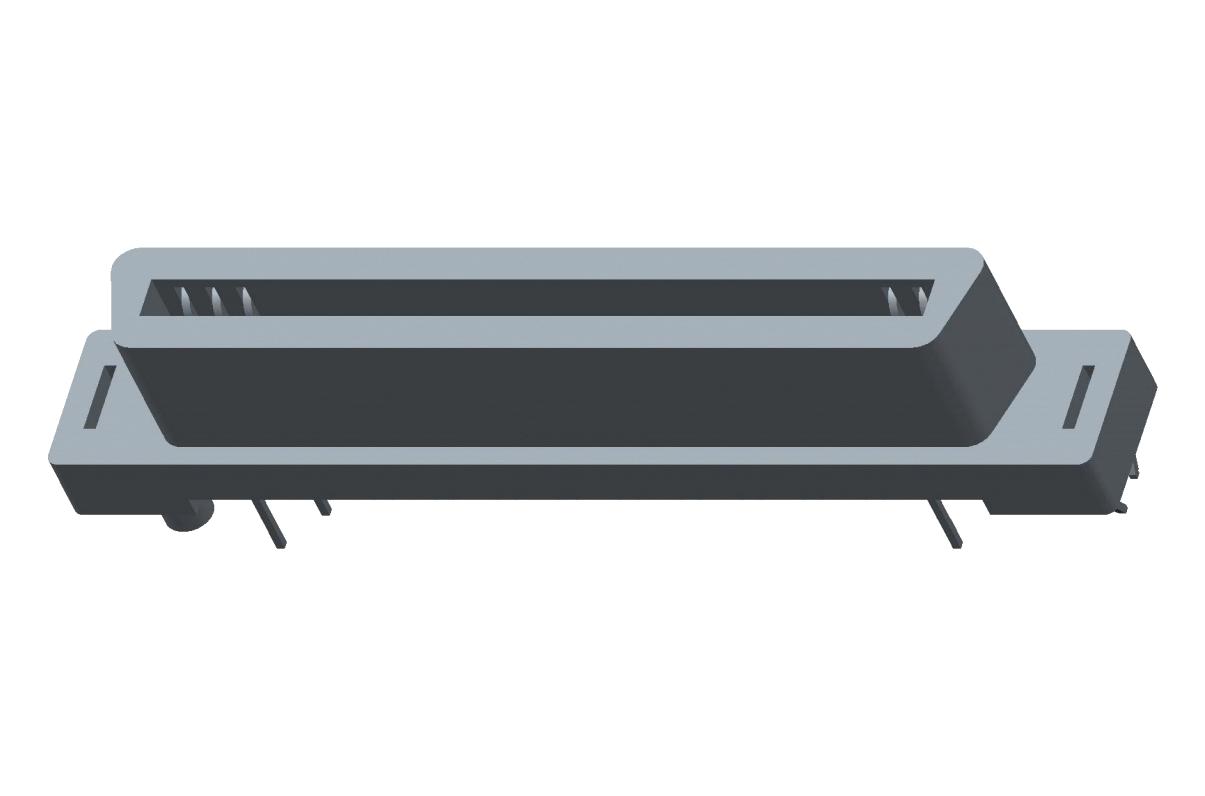

MOLEX 15921450 Connector System
The EBBI 50D Connector System by Molex is a high-density 1.27mm pitch receptacle designed for reliable board-to-board and signal applications. It features a vertical orientation with 50 circuits, constructed from durable phosphor bronze with gold plating for excellent conductivity and corrosion resistance. The connector supports up to 2000 mating cycles, operating within a temperature range of -40°C to +105°C. RoHS and REACH compliant, it ensures safety and environmental standards. Ideal for compact electronic assemblies requiring precise connections and high durability, this system provides robust performance in demanding industrial environments.
MOLEX 15921450 Connector System Specifications:
- Pitch: 1.27mm
- Number of Circuits: 50
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability: 2000 mating cycles
- Flammability: UL 94V-0
- Operating Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 1.0A
- Maximum Voltage: 30V
- Orientation: Vertical
- PC Tail Length: 2.79mm
- PCB Thickness - Recommended: 1.57mm
- Packaging: Tray
- Process Capability: Lead-free (SMC & Wave soldering)
Buy the Molex 15921450 – Reliable Connector System for Industrial Applications
Enhance your electronic assemblies with the Molex Connector System offering 50 circuits at a 1.27mm pitch. Designed for reliability and durability, it supports up to 2000 mating cycles with excellent corrosion resistance thanks to gold plating. Suitable for board-to-board and signal connections, it operates within -40°C to +105°C temperature range. Compliant with RoHS and REACH, this high-performance connector ensures safety, environmental compliance, and robust performance in compact, demanding industrial applications. Purchase online for quick, reliable delivery.
Buy Molex 15921450 now and ensure reliable, high-density connections with proven durability for demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 15921450?
You can click on the BUY or RFQ button to purchase 15921450 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15921450?
You can download the 15921450 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15921450?
MOLEX
