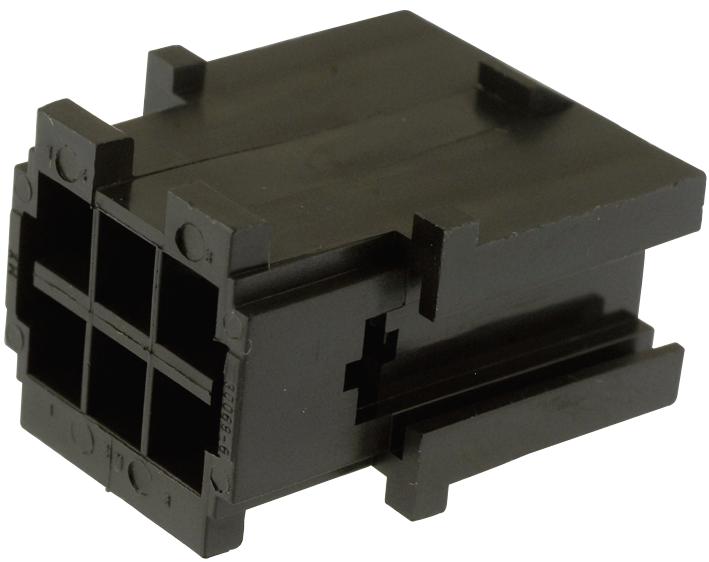

MOLEX 15976041 Power Connector
The Mini-Fit TPA housing features a 4.20mm pitch, dual-row configuration with secondary terminal retention, designed for reliable power connections in various industrial applications. Made from durable polyester resin and compliant with UL and CSA standards, it operates within a temperature range of -40°C to +105°C, supporting a maximum current of 13A per circuit when paired with compatible terminals. Suitable for wire-to-wire power connections, this plug housing is ideal for applications requiring secure, high-current electrical connections with stackable and panel-mount options.
MOLEX 15976041 Power Connector Specifications:
- Pitch: 4.20mm
- Gender: Male
- Number of Rows: 2
- Color: Black
- Material: Polyester
- Flammability Rating: 94V-0
- Temperature Range: -40°C to +105°C
- Current Capacity: 13A per circuit
- Packaged as: Bag
- Mates With: 30068 Plug Housing, 30069 Header, 30070 Right Angle Header, 44473 Right Angle Header
- Use With: 30072 4.20mm Pitch Mini-Fit TPA Receptacle Housing
- Compliance: UL, CSA, RoHS, China RoHS, ELV
- Part Number: 15-97-6041
Buy the Molex 15-97-6041 – Reliable Mini-Fit TPA Power Connector for Industrial Applications
Secure high-current power connections with the Molex Mini-Fit TPA Power Connector, featuring a 4.20mm pitch, dual-row design, and secondary terminal retention. Engineered for reliability, it supports up to 13A per circuit and operates across a wide temperature range of -40°C to +105°C. Made from flame-retardant polyester, this UL and CSA-approved connector offers compatibility with various headers and wire harnesses. Ideal for industrial, commercial, and electronic applications where secure, stackable, and panel-mount connections are critical for system performance and safety.
Buy Molex 15-97-6041 now and experience unmatched reliability and high-current power connection performance for industrial electrical systems.
