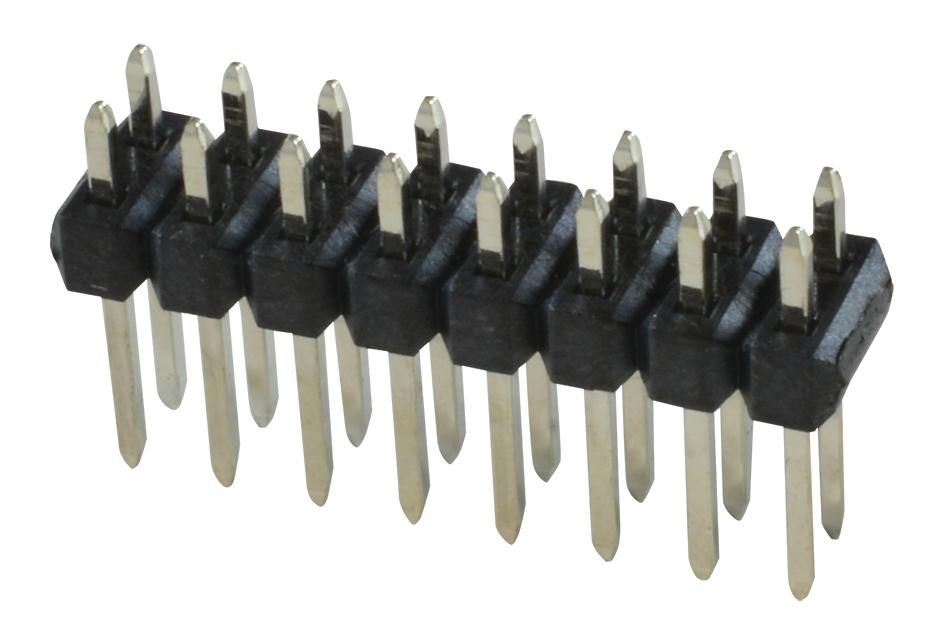

MOLEX 10897121 C-Grid Connector
This high-temperature 2.54mm pitch C-Grid breakaway header features a dual-row vertical configuration with 12 circuits, tin plating, and a 2.72mm PC tail length. Designed for reliable board-to-board connections, it is UL and CSA certified, durable for multiple mating cycles, and suitable for high-temperature applications. Made from high-temperature thermoplastic with copper alloy contacts, it ensures excellent electrical performance with a maximum current of 3.0A and voltage of 250V. Its PCB compatibility includes a 2.54mm pitch, a 1.60mm PCB thickness recommendation, and through-hole termination for secure mounting.
MOLEX 10897121 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Number of Rows: 2
- Circuits: 12
- Maximum Circuits: 12
- Color - Resin: None specified
- Durability: No specified limit
- Flammability: UL 94V-0
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.740 grams
- Orientation: Vertical
- PC Tail Length: 2.72mm
- PCB Thickness - Recommended: 1.60mm
- Voltage - Max: 250V
- Current - Max: 3.0A
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Agency Certifications: UL, CSA
- Packaged in: Bag
- Guide to Mating Part: None specified
- Lock to Mating Part: No
- Polarized to Mating Part: No
Buy the Buy Molex C-Grid Breakaway Header Part Number 10897121 Online
Purchase the Molex C-Grid Connector with part number 10897121 effortlessly online. This high-temperature, dual-row header offers 12 circuits with tin plating, ensuring durable and reliable board-to-board connections. Designed for applications requiring up to 250V and 3A, it features a 2.54mm pitch, 2.72mm PC tail length, and is UL and CSA certified. Its through-hole termination guarantees secure mounting, making it ideal for high-performance electronic assemblies. Order now for dependable performance and quick delivery!
Get Molex 10897121 today—built for reliable electrical connections in high-temperature environments.
Frequently Asked Questions
Where can I buy MOLEX 10897121?
You can click on the BUY or RFQ button to purchase 10897121 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897121?
You can download the 10897121 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897121?
MOLEX
