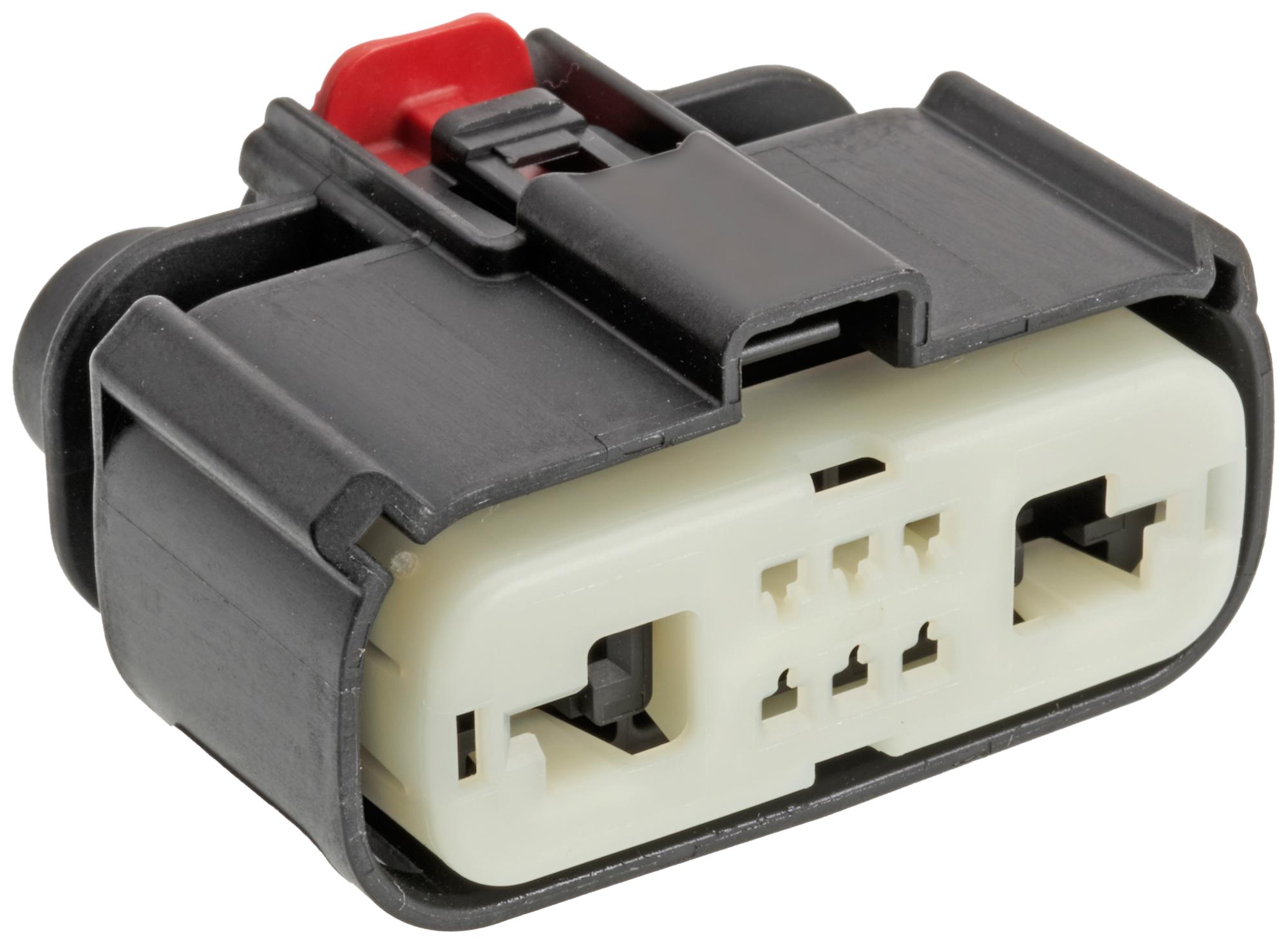

MOLEX 1600783006 MX150 Connector Assembly
The MOLEX 160078-3006 is a MX150 hybrid mat-sealed female connector assembly designed for robust wire-to-wire connections. It features a dual-row configuration with 8 circuits, offering increased capacity and flexibility. The inclusion of Connector Position Assurance (CPA) ensures a secure and reliable mating connection. Constructed with a black nylon resin body, this connector is suitable for demanding environments requiring durability and protection against moisture and contaminants. It is commonly used in automotive and industrial applications where a sealed and reliable power connection is essential.
MOLEX 1600783006 MX150 Connector Assembly Specifications:
- Product Family: Crimp Housings
- Series: 160078
- Application: Power, Wire-to-Wire
- Circuits (maximum): 8
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 22.814/g
- Number of Rows: 2
- Packaging Type: Individual Cell Panel Mount
- Pitch - Mating Interface: 3.50mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +125°C
- EU ELV Compliant: Yes
- EU RoHS Compliant: Yes
- China RoHS Compliant: Yes
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Use With: MX150 Female Terminal 33012, 33001; Industry Standard Terminal 2.80mm
