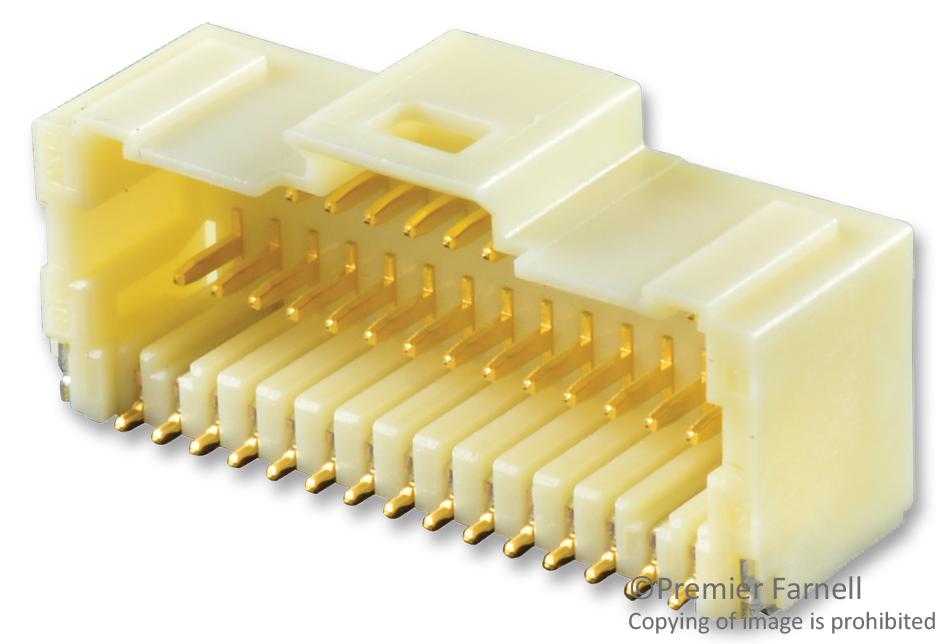

MOLEX 5015715007 Wire-to-Board Connector
The Pico-Clasp Wire-to-Board Header offers a 1.00mm pitch with dual-row, right-angle design, gold-plated contacts, and an inner positive lock, supporting up to 50 circuits for reliable surface-mount connections in compact electronic assemblies. Made from durable nylon and phosphor bronze with gold plating, it withstands temperatures from -40°C to +105°C and supports a maximum current of 1.0A per contact and voltage of 50V AC/DC. This RoHS-compliant component is ideal for high-density electronic devices requiring secure, durable wire-to-board connections.
MOLEX 5015715007 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Num Circuits: 50
- Number of Rows: 2
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Nylon
- Color - Resin: Natural
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Durability (mating cycles max): Not specified but industry standard features
- Orientation: Right Angle
- Packaging Type: Embossed Tape on Reel
- RoHS Compliant: Yes
- Halogen-Free: No
- Guide to Mating Part: Pico-Clasp Female Housing 501189
- Lock to Mating Part: Yes
- PCB Locator: Yes
- PCB Retention: Yes
Buy the Buy Molex Wire-to-Board Connector Part Number 5015715007 Online
Enhance your electronic assemblies with the Molex Pico-Clasp wire-to-board connector, featuring a 1.00mm pitch, dual-row design, and gold-plated contacts for superior conductivity and durability. Suitable for surface mounting, this RoHS-compliant connector supports up to 50 circuits with a maximum current of 1.0A per contact, ideal for compact devices. Engineered for high-density applications, it offers secure mating with an inner positive lock and proven reliability across temperature ranges from -40°C to +105°C. Purchase online today for dependable performance and easy installation in your projects.
Order your Molex Pico-Clasp Wire-to-Board connector part number 5015715007 today for reliable, high-density electronic connections in your projects.
Frequently Asked Questions
Where can I buy MOLEX 5015715007?
You can click on the BUY or RFQ button to purchase 5015715007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5015715007?
You can download the 5015715007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5015715007?
MOLEX
