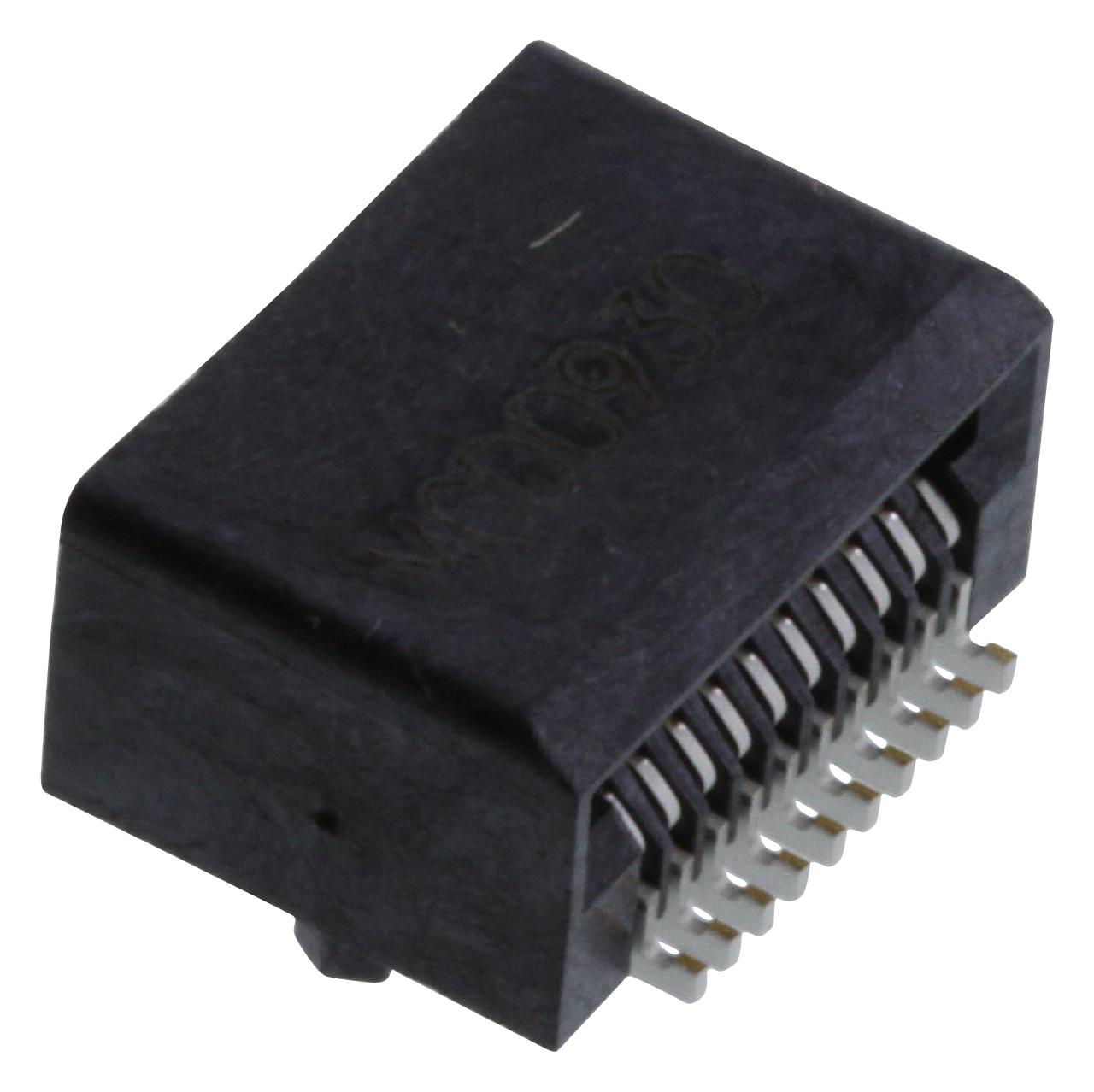

MOLEX 1703820002 High-Speed I/O Module
The zSFP+ Assembly is a high-speed, right-angle, surface-mount module designed for optical and electrical interconnect solutions. Featuring 20 circuits, gold-plated contacts, and tin tails, it ensures reliable connections in high-performance data transfer. Suitable for industrial, networking, and electronic applications, the assembly is RoHS and REACH compliant, with UL certification. Its compact design supports durability up to 100 mating cycles, operating within a temperature range of -40°C to +85°C. Made from high-temperature thermoplastic with brass and phosphor bronze contacts, offering robustness and longevity in demanding environments.
MOLEX 1703820002 High-Speed I/O Module Specifications:
- Circuits (Loaded): 20
- Color - Resin: Black
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.857 g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.57mm
- Plating min - Mating: 0.762um
- Plating min - Termination: 0.762um
- Temperature Range - Operating: -40°C to +85°C
- Voltage - Maximum: 30V AC/DC
- Current - Maximum per Contact: 0.5A
- Surface Mount Compatible: Yes
Buy the Molex 1703820002 – Reliable High-Speed Pluggable I/O for Industrial Applications
Experience reliable high-speed data transfer with this surface-mount right-angle I/O module featuring 20 circuits, gold-plated contacts, and robust thermoplastic construction. Designed for industrial, networking, and electronic applications, it complies with RoHS and REACH standards, ensuring safety and environmental sustainability. The assembly offers durability up to 100 mating cycles and operates within a temperature range of -40°C to +85°C. Its compact and robust design makes it ideal for demanding environments requiring stable, high-performance electrical interconnects.
Get Molex 1703820002 today—built for precision and long-lasting durability in high-speed data transfer environments.
