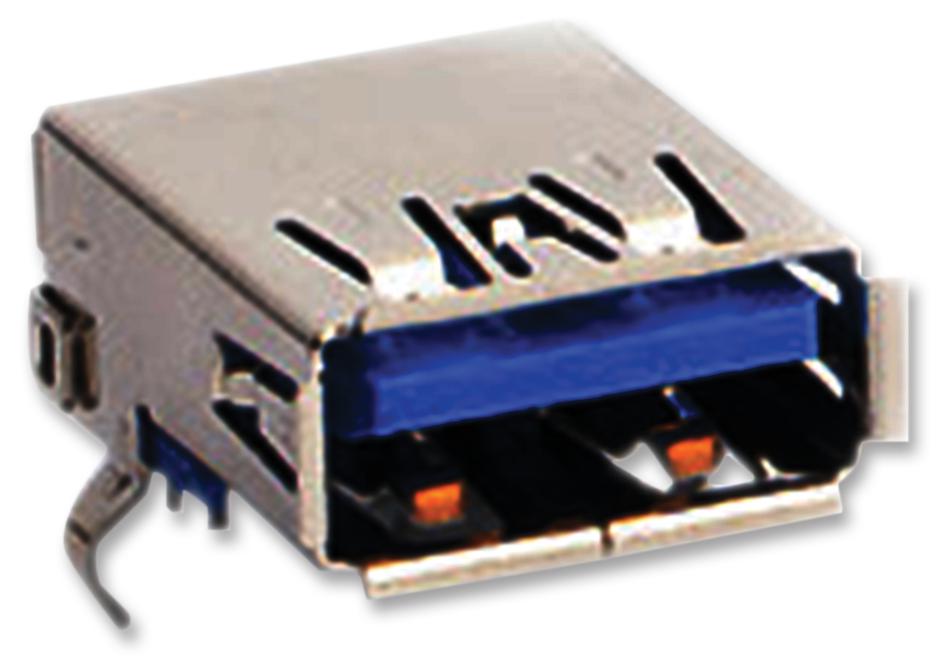

MOLEX 484050003 USB Receptacle
This USB 3.0 Receptacle offers a right-angle Type A connection with high-temperature resistance, featuring a blue nylon housing, 0.38m gold-plated contacts, and a contact height of 4.01mm. Suitable for demanding applications, it supports up to 1.8A current, max voltage of 30V AC/DC, and is designed for 5000 mating cycles. Constructed from copper alloy with nickel and tin plating, it ensures durability and reliable performance in operating temperatures from -20°C to +85°C. Ideal for wiring and electronic assemblies requiring fast data transfer and robust connection strength.
MOLEX 484050003 USB Receptacle Specifications:
- Series: VO Connectors
- Application: Wire-to-Board
- Component Type: Receptacle
- Part Number: 0484050003
- Color: Blue
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Nickel, Tin
- Net Weight: 2.420 grams
- Durability (mating cycles max): 5000
- Gender: Female
- Number of Rows: 1
- Orientation: Right Angle
- PC Tail Length: 2.80mm
- Temperature Range - Operating: -20°C to +85°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 1.8A
- Voltage - Maximum: 30V AC/DC
- Port Type: USB 3.0 Type A
- Connector Style: Female, Receptacle
- Polarized to Mating Part: Yes
- Packaging Type: Tray
- PCB Retention: Yes
- PCB Locator: Yes
Buy the Buy Molex USB 3.0 Part Number 0484050003 Online
Purchase the Molex USB 3.0 Receptacle with right-angle Type A design, featuring high-temperature nylon housing, gold-plated contacts, and support for 1.8A current. Engineered for durability, it withstands up to 5000 mating cycles and operates efficiently within -20°C to +85°C. Perfect for high-speed data transfer, wire-to-board connections, and applications requiring robust and reliable electronic interfaces, ensuring long-lasting performance in industrial, consumer, and communication equipment.
Get Molex 0484050003 today—built for high-temperature resilience and reliable data transfer in demanding electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 484050003?
You can click on the BUY or RFQ button to purchase 484050003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 484050003?
You can download the 484050003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 484050003?
MOLEX
