MOLEX 1707290001 Interconnect Connector
The iPass+ HD Interconnect System by Molex features a vertical internal cable and connector assembly designed for wire-to-board applications. It supports up to 1A current and a maximum voltage of 48V DC, with a pitch of 0.75mm and a PCB thickness recommendation of 1.57mm. Constructed from high-temperature thermoplastic resin with copper alloy contacts plated in gold over nickel, it provides reliable electrical connections. Suitable for applications requiring up to 50 mating cycles, it is RoHS compliant, halogen-free, and rated for operating temperatures between -40°C to +80°C, ensuring durability in various environments.
MOLEX 1707290001 Interconnect Connector Specifications:
- Material - Resin: High-Temperature Thermoplastic
- Material - Metal: Copper Alloy
- Material - Plating: Gold over Nickel on Mating, Tin on Termination
- Flammability: 94V-0
- Color: Black
- Net Weight: 3.037 g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 1.57 mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.57 mm
- Pitch - Mating Interface: 0.75 mm
- Operating Temperature Range: -40°C to +80°C
- Mating Cycles Max: 50
- Waterproof / Dustproof: No
- RoHS Compliant: Yes
- UL Certification: E107635
- CSA Certification: LR19980
- Environmental Compliance: RoHS, China RoHS
- Application: Wire-to-Board
- Packaging Type: Tray Assembly

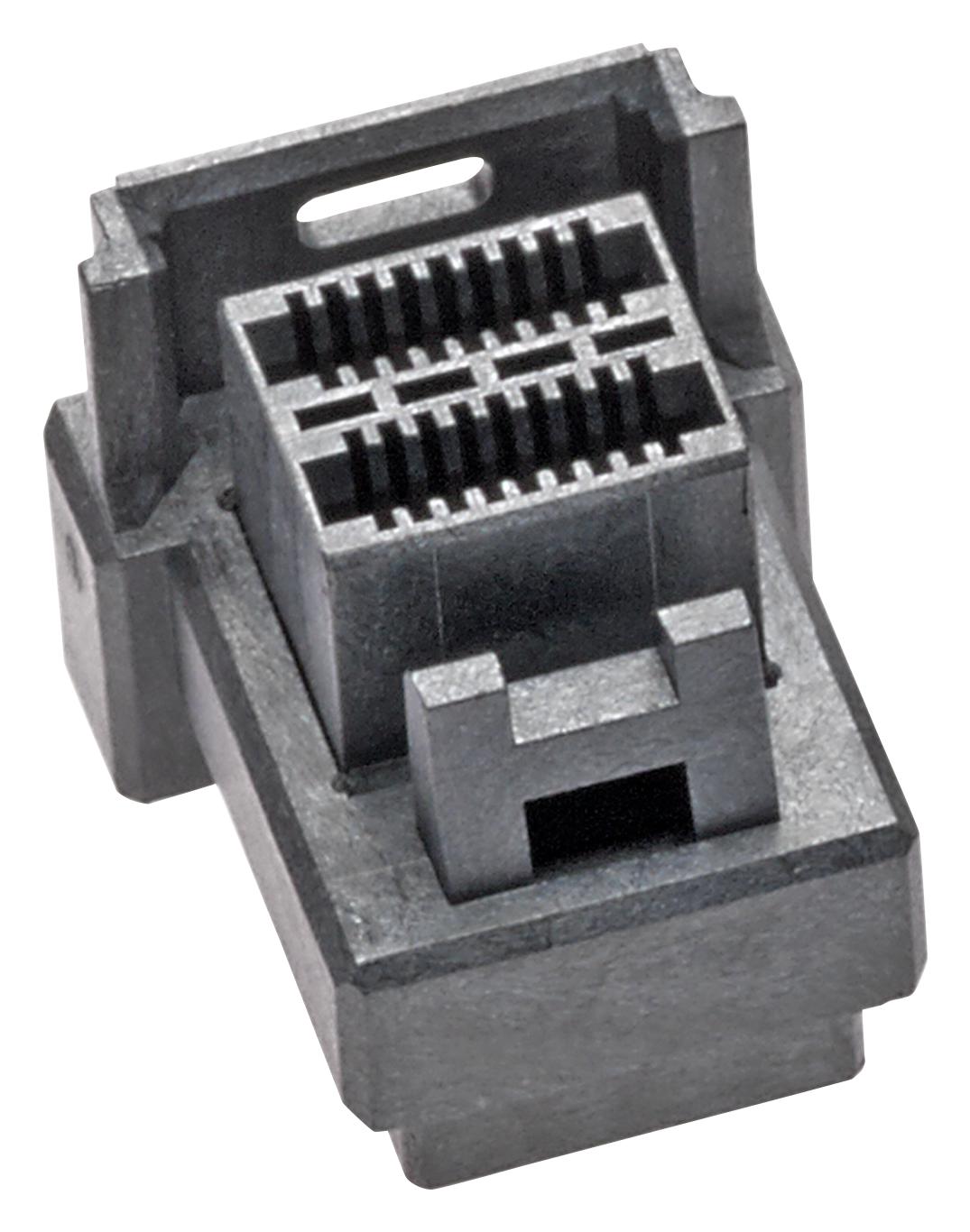

Buy the Buy Molex iPass+ HD Interconnect System Part Number 1707290001 Online
Experience reliable and high-quality wire-to-board connection with the Molex Interconnect Connector. Featuring gold-plated contacts, this black thermoplastic device supports up to 1A and 48V DC, ensuring excellent electrical performance. Its compact vertical design fits PCB thicknesses of 1.57mm and provides up to 50 mating cycles, making it ideal for industrial automation and electronics. Easy to install, RoHS compliant, and rated for extreme temperatures, this connector guarantees durability and safe operation in demanding environments.
Get Molex 1707290001 today—designed for high reliability, supporting 50 mating cycles with gold-plated contacts for durable, secure connections.
Frequently Asked Questions
Where can I buy MOLEX 1707290001?
You can click on the BUY or RFQ button to purchase 1707290001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1707290001?
You can download the 1707290001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1707290001?
MOLEX
