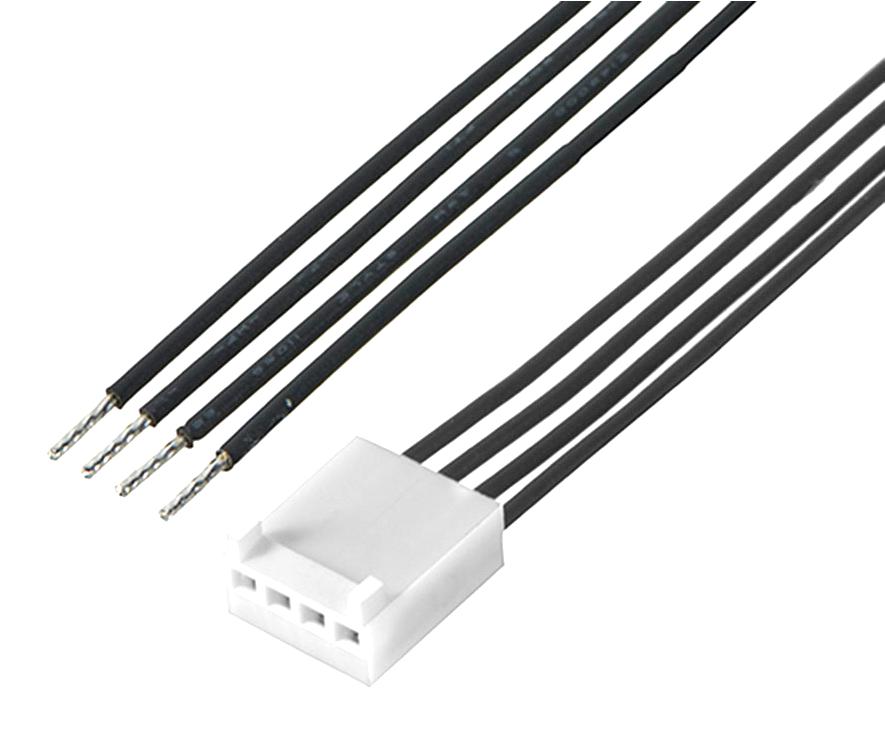

MOLEX 2177971041 KK 254 Cable Assembly
The MOLEX 217797-1041 is a versatile Off-the-Shelf (OTS) cable assembly designed for applications requiring a KK 254-to-Pigtail connection. With a 2.54mm pitch and 4 circuits, this assembly provides a compact and efficient solution for connecting devices. The 150mm length offers flexibility in routing and integration. Constructed with brass and nylon materials, and featuring tin plating for both mating and termination interfaces, this assembly ensures reliable performance. It is RoHS compliant and suitable for a wide range of industrial and commercial applications.
MOLEX 2177971041 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: KK 254-to-Pigtail
- Cable Length: 150.00mm
- Circuits (Loaded): 4
- Color - Resin: Natural (White)
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Number of Rows: 1
- Pitch - Mating Interface: 2.54mm
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- UPC: 195842123045
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
Buy the 217797-1041 MOLEX KK 254 Cable Assembly | myMectronic
Purchase the MOLEX 217797-1041 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2177971041?
You can click on the BUY or RFQ button to purchase 2177971041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177971041?
You can download the 2177971041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177971041?
MOLEX
