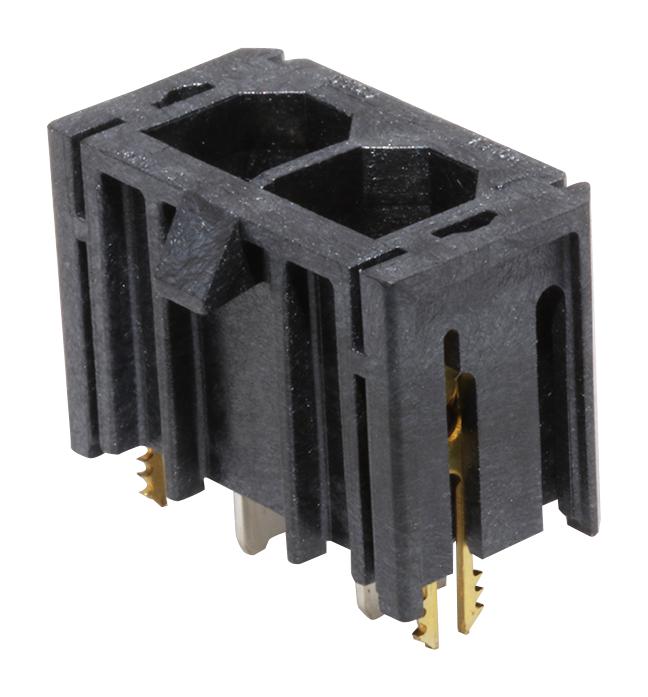

MOLEX 1720420402 Super Sabre Vertical Header
The MOLEX 1720420402 Super Sabre Vertical Header is a robust and reliable connector solution for wire-to-board applications. Designed with a short solder tail and board lock, this header ensures a secure and stable connection. It is compliant with UL1977 finger proof standards, enhancing safety and usability. The header supports a maximum current of 30A per blade and operates within a temperature range of -40°C to +125°C, making it suitable for a wide range of industrial environments. Its vertical orientation and through-hole termination style make it ideal for various PCB designs.
MOLEX 1720420402 Super Sabre Vertical Header Specifications:
- overview: Super Sabre Connector System
- description: Super Sabre Vertical Header, 4 Circuit, Short Solder Tail with Board Lock
- agency_certification: CSA UL
- operating_temperature: Per USCAR-2; Class 3
- product_family: PCB Headers
- series: 172042
- application: Power, Signal, Wire-to-Board
- circuits_loaded: 4
- circuits_maximum: 4
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Copper
- material_plating_mating: Silver
- material_plating_termination: Matte Tin, Nickel
- material_resin: High Temperature Thermoplastic
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.81mm
- pcb_retention: Yes
- packaging_type: Tray
- pitch_mating_interface: 7.50mm
- plating_min_mating: 0.025µm
- plating_min_termination: 0.025µm
- polarized_to_mating_part: Yes
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +125°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 30.0A per blade
- voltage_maximum: 600V AC (RMS)
- lead_free_process_capability: SMC&WAVE
- max_cycles_at_max_process_temperature: 003
- process_temperature_max_c: 260
- mates_with: 172672 Crimp Housing
