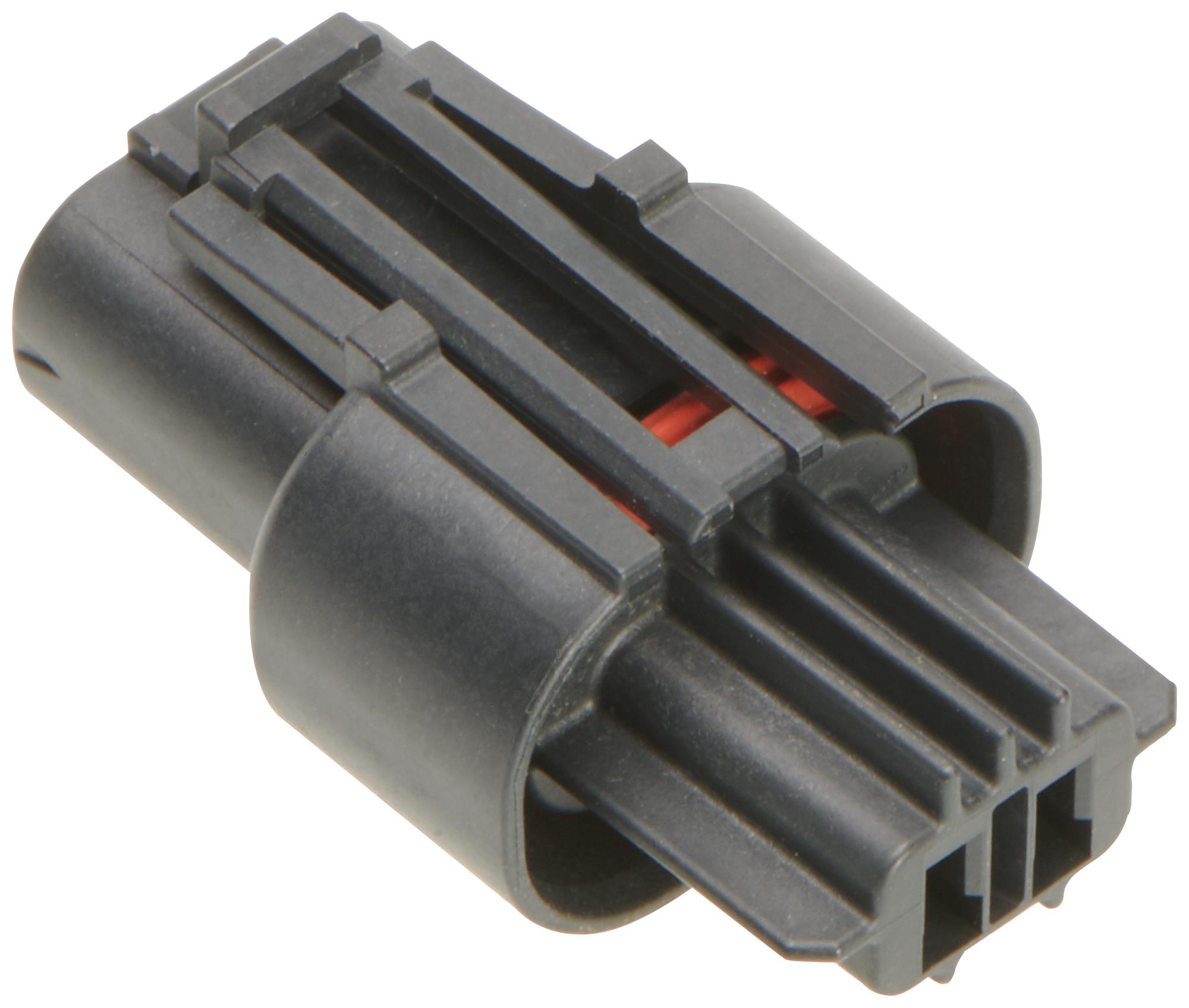

MOLEX 2077820002 Squba Sealed Receptacle Assembly
The MOLEX 207782-0002 Squba Sealed Receptacle Assembly is a robust connector solution for wire-to-wire applications requiring a sealed environment. Designed with a 3.6mm pitch and a single-row configuration for 2 circuits, this receptacle assembly is ideal for power and signal transmission in automotive, industrial, and other demanding environments. Constructed from Nylon resin, it offers excellent durability and resistance to environmental factors. The assembly is polarized to the mating part and features a locking mechanism for secure connections, ensuring reliable performance in critical applications.
MOLEX 2077820002 Squba Sealed Receptacle Assembly Specifications:
- product_family: Crimp Housings
- series: 207782
- application: Power, Signal, Wire-to-Wire
- datasheet_order_no: 987651-7401
- circuits_maximum: 2
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: Under Evaluation
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 3.217
- number_of_rows: 1
- packaging_type: Tray
- panel_mount: No
- pitch_mating_interface_mm: 3.60
- pitch_termination_interface_mm: 3.60
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- upc: 191130533459
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per - ED/71/2019 (16 July 2019)
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- mates_with: Squba 3.6 Plug Assembly 2077780002
- use_with: Squba 3.6 Crimp Terminal 207777
