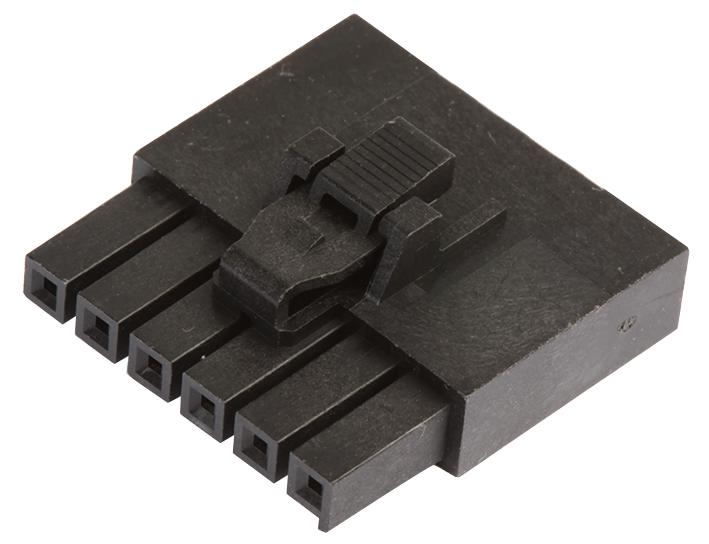

MOLEX 1722561006 Power Connector
The Ultra-Fit™ Receptacle Housing with a 3.50mm pitch is designed for power applications, featuring a single row of 6 circuits in a durable black resin. It is female gender, polarized for secure mating, and lockable to ensure reliable connections. Made from high-quality nylon, it operates within a temperature range of -40°C to +120°C and is compliant with RoHS standards. Suitable for wire-to-board configurations, this low-halogen, halogen-free connector can handle a maximum current of 14.0A per contact, ideal for compact, high-current power solutions.
MOLEX 1722561006 Power Connector Specifications:
- Pitch - Mating Interface: 3.50mm
- Pitch - Termination Interface: 3.50mm
- Number of Rows: 1
- Circuits: 6
- Gender: Female
- Material - Resin: Nylon
- Color: Black
- Temperature Range - Operating: -40°C to +120°C
- Current - Maximum per Contact: 14.0A
- Flammability: UL 94V-0
- RoHS Compliance: Yes (EU and China RoHS)
- Halogen-Free: Yes
- Net Weight: 2.000g
- Packaging: Bag
- Panel Mount: No
- Polarized to Mating Part: Yes
- Lock to Mating Part: Yes
- Application: Power, Wire-to-Board
- RoHS Environmental Compliance: Yes
Buy the Molex 1722561006 – Reliable Power Connector for Industrial Applications
Discover the Molex Power Connector designed for high-current power applications with a 3.50mm pitch and 6 circuits in a durable black nylon housing. Features include polarized locking, RoHS compliance, operating temperatures from -40°C to +120°C, and a maximum current capacity of 14A per contact. Perfect for industry-grade wire-to-board solutions requiring reliable, compact, and safe power connections. Purchase this high-quality connector online today and ensure efficient, secure power distribution in your projects.
Get Molex 1722561006 today—built for precision, durability, and high-current power connectivity.
Frequently Asked Questions
Where can I buy MOLEX 1722561006?
You can click on the BUY or RFQ button to purchase 1722561006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1722561006?
You can download the 1722561006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1722561006?
MOLEX
