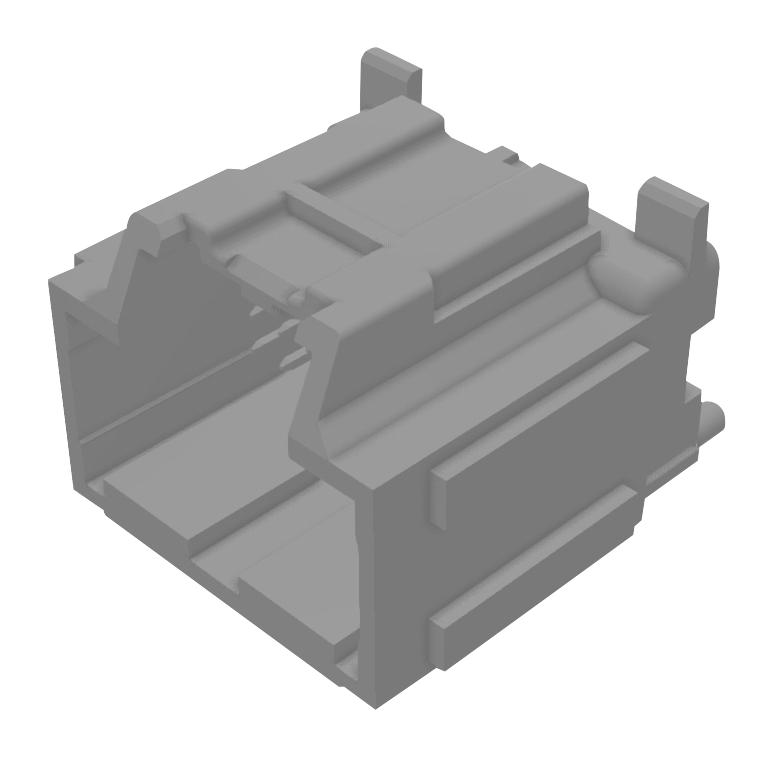

MOLEX 346900161 Stac64 Vertical Header
The MOLEX 34690-0161 Stac64 Vertical Header Assembly is a robust solution for wire-to-board connections in various industrial applications. This header features 16 circuits and is designed with polarization B for secure mating. Constructed with a brass metal base, tin plating for both mating and termination interfaces, and a high-temperature thermoplastic resin, it ensures reliable performance. The header's vertical orientation and polarized design contribute to ease of assembly and prevent mis-mating. It is suitable for power applications and is rated for a maximum current of 10.0A and a maximum voltage of 500V. The Stac64 system offers flexibility and scalability for various board designs.
MOLEX 346900161 Stac64 Vertical Header Specifications:
- status: Active
- overview: Stac64 Single, Multi-Pocket and Hybrid Header System
- description: Stac64 Vertical Header Assembly, 16 Circuits, Polarization B, Gray, Tray
- series: 34690
- application: Power, Wire-to-Board
- comments: Polarization B, Polarization B
- circuits_loaded: 16
- circuits_maximum: 16
- color_resin: Gray
- durability_mating_cycles: 10
- first_mate_last_break: No
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 6.549
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.33
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 2.54
- pitch_termination_interface_mm: 2.54
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating_c: -40 to +100
- termination_interface_style: Through Hole
- current_max_per_contact_a: 10.0
- voltage_max_v: 500
- duration_at_max_process_temp_seconds: 040
- lead_free_process_capability_wave_cycles: 003
- process_temperature_max_c: 260
- elv_compliant: Yes
- rohs_compliant: Yes
- china_rohs: Not Relevant
- reach_svhc: Not Contained
- halogen_free_status: Not Relevant
- mates_with: 34729, 2.54mm (.100") Pitch Stac64 Right Angle Receptacle, 31408 USCAR 2.54mm (.100”) Pitch Receptacle
