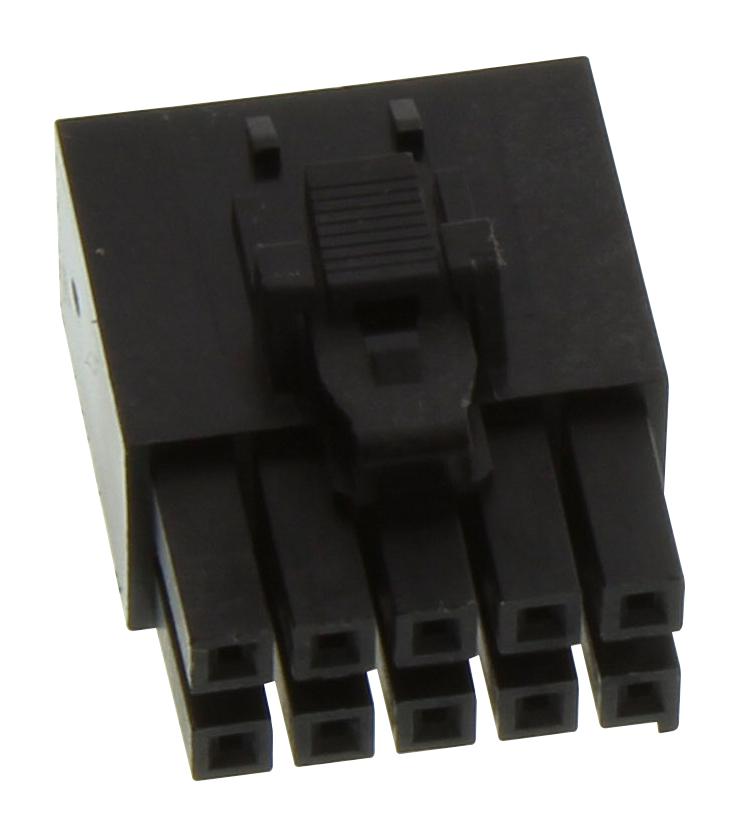

MOLEX 1722581110 Ultra-Fit TPA Receptacle Housing
The MOLEX 172258-1110 Ultra-Fit TPA Receptacle Housing is a critical component in wire-to-board power applications. Designed with 10 circuits and a robust black nylon resin construction, this housing offers reliable performance and durability. It is compatible with Ultra-Fit Female Crimp Terminals and provides a keyed and locked connection to mating parts. The housing is RoHS compliant and operates effectively within a temperature range of -40°C to +120°C, making it suitable for a wide range of industrial environments. Its compact design and ease of use contribute to efficient assembly processes.
MOLEX 1722581110 Ultra-Fit TPA Receptacle Housing Specifications:
- series: 172258
- application: Power, Wire-to-Board
- circuits_maximum: 10
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.690
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 3.50mm
- pitch_termination_interface: 3.50mm
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +120°C
- current_maximum_per_contact_a: 14.0
- eu_elv: Not Relevant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: Ultra-Fit Right Angle Header 172316, Ultra-Fit Vertical Header 172298, 172299
- use_with: Ultra-Fit Female Crimp Terminal 172253, Ultra-Fit TPA Retainer 172264
- lead_free_process_capability: N/A
