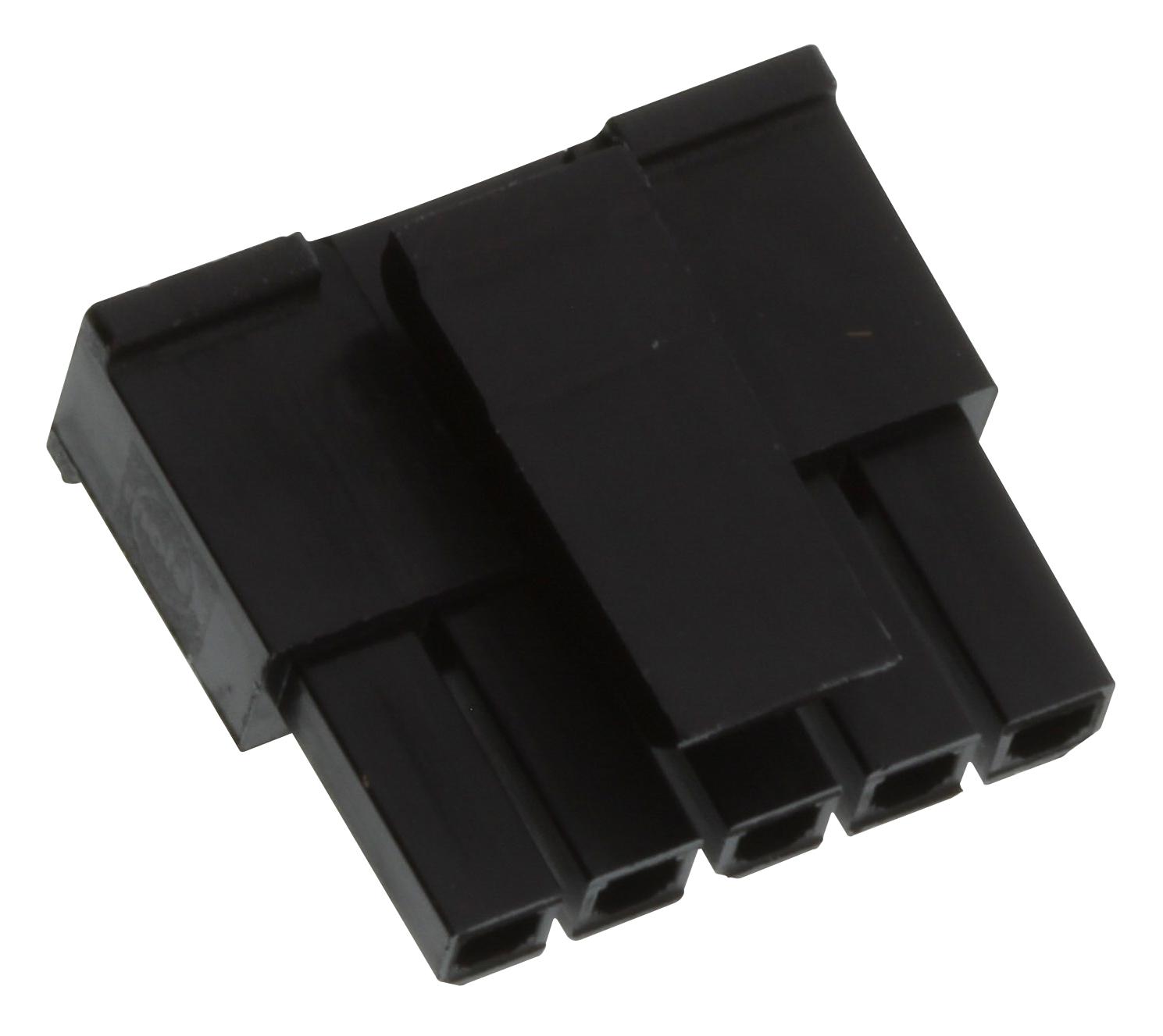

MOLEX 436450508 Micro-Fit Receptacle Housing
The Micro-Fit 3.0 Receptacle Housing is a single-row, five-circuit connector made from low-halogen nylon with UL 94V-0 flammability rating. Designed for power and wire-to-wire applications, it features a 3.00mm pitch, is polarized for secure mating, and operates within a temperature range of -40°C to +105°C. The connector is RoHS and ELV compliant, halogen-free, and suitable for panel mount installations. Its compact design ensures reliable connections in high-density electronic systems, making it ideal for industrial, automotive, and consumer electronic applications.
MOLEX 436450508 Micro-Fit Receptacle Housing Specifications:
- Number of Circuits: 5
- Color: Black
- Material: Nylon
- Flammability: UL 94V-0
- Halogen-Free: Yes
- Pitch: 3.00mm
- Operating Temperature Range: -40°C to +105°C
- UL and CSA Certified
- Polarized to Mating Part: Yes
- Lock to Mating Part: No
- Stackable: No
- Net Weight: 0.540 grams per unit
- Packaging: Bag
- Material Info: Nylon
- Reference Drawing: 430250000-AS-000
- Application Specification: TS-46235-001-001
- RoHS and ELV Compliant
- Certified for Power, Wire-to-Wire Applications
- Designed for industrial and electronic systems
Buy the Molex Series Micro-Fit 3.0 Receptacle Housing: 0436450508
Discover the reliable and compact Micro-Fit 3.0 Receptacle Housing, designed for power and wire-to-wire connections in electronic systems. Made from UL 94V-0 low-halogen nylon, it features a 3.00mm pitch, polarization for secure mating, and operates within -40°C to +105°C. Its halogen-free, RoHS, and ELV compliance ensures safety and environmental friendliness. Ideal for industrial, automotive, and consumer electronics, this high-density connector guarantees robust performance and easy installation, making it the perfect choice for demanding applications.
Order your Molex Series Micro-Fit 3.0 Receptacle Housing today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 436450508?
You can click on the BUY or RFQ button to purchase 436450508 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436450508?
You can download the 436450508 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436450508?
MOLEX
