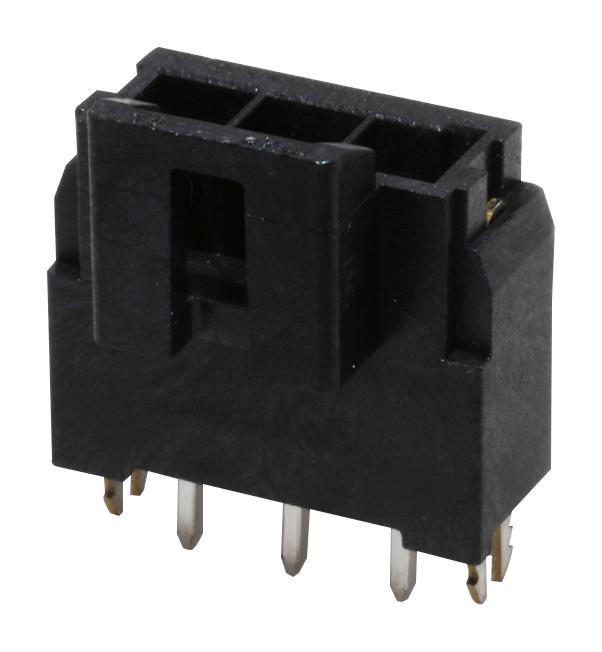

MOLEX 1722871103 Ultra-Fit Vertical Header
The MOLEX 172287-1103 Ultra-Fit Vertical Header is a robust solution for power wire-to-board connections. Designed with a 3.50mm pitch and a single-row layout, it accommodates 3 circuits and utilizes tin plating for enhanced conductivity and corrosion resistance. The header's polarized and shrouded design ensures proper mating and prevents misconnections. It is rated for a maximum current of 14.0A and a maximum voltage of 400V AC/DC, making it suitable for a wide range of industrial applications. The header is also glow-wire capable and features a liquid crystal polymer resin for durability and heat resistance. It is compatible with Ultra-Fit receptacle housings and offers a secure connection with keying and locking features.
MOLEX 1722871103 Ultra-Fit Vertical Header Specifications:
- overview: Ultra-Fit Power Connectors
- description: Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 3 Circuits, with Solder Clips, Tin (Sn), Glow-Wire Capable, Black
- series: 172287
- application: Power, Wire-to-Board
- product_family: PCB Headers
- number_of_circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles_max: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: Yes
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.211
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length_mm: 3.20
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.50
- pitch_termination_interface_mm: 3.50
- plating_min_mating_um: 1.524
- plating_min_termination_um: 1.524
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: Yes
- temperature_range_operating_c: -40° to +120°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 14.0
- voltage_maximum_ac_rms_dc: 400V
- max_process_temp_seconds: 090
- max_cycles_process_temp: 002
- process_temp_max_c: 260
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- elv_not_relevant: Not Relevant
- rohs_compliant: Compliant
- china_roh: Green Image
- phthalates_not_contained: Not Contained
