MOLEX 39301161 Power Connector
The Mini-Fit Jr. Power Connectors are high-current, reliable power connectors featuring a dual-row, right-angle design with snap-in plastic peg PCB lock. Made from durable PA Polyamide Nylon 6/6 with 94V-2 flammability rating and gold-plated contacts, they support up to 13A per circuit at 600V, suitable for wire-to-board power applications. These connectors have a 4.20mm mating and termination pitch, polarized design, and operate effectively within -40°C to +105°C. They are RoHS and REACH compliant, halogen-free, with a 5.546g weight per unit and a maximum of 16 circuits.
MOLEX 39301161 Power Connector Specifications:
- Material - Resin: Nylon
- Resin Flammability: 94V-2
- Current - Max per contact: 13.0A
- Voltage - Max: 600V
- Operating Temperature Range: -40°C to +105°C
- Number of Circuits (Loaded): 16
- Color - Resin: Matte Tin
- Contact Plating - Mating: 0.762μm gold
- Contact Plating - Termination: 2.540μm
- Pitch - Mating Interface: 4.20mm
- Dimensions - PCB Thickness: 1.78mm
- Orientation: Right Angle
- Lock: Snap-in Plastic Peg PCB Lock
- Durability (mating cycles max): Not specified
- Certification: CSA, UL
- Packaging: Bag
- Temperature Range - Operating: -40°C to +105°C

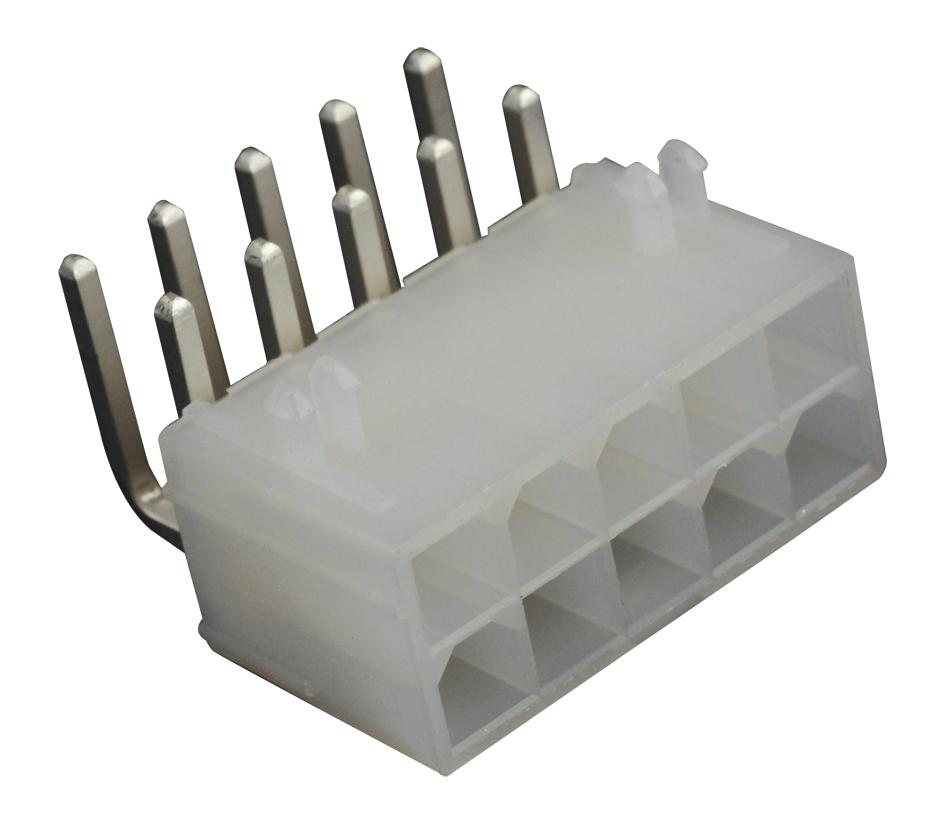

Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 0039301161 Online
Purchase the Molex Mini-Fit Jr. Power Connector online today to benefit from a robust, high-current rated power solution designed for wire-to-board applications. This versatile connector features a dual-row, right-angle design with a snap-in PCB lock, supporting up to 13A per circuit at 600V. Made from durable nylon with gold-plated contacts, it ensures reliable electrical connections with excellent mating and durability. Suitable for various industrial power systems, it’s RoHS and REACH compliant, halogen-free, and operates effectively from -40°C to +105°C. Make your projects safer and more efficient now!
Order your Molex Series0039301161 power connector today and ensure reliable power connections with high-current capacity, dual-row design, and RoHS compliance.
Frequently Asked Questions
Where can I buy MOLEX 39301161?
You can click on the BUY or RFQ button to purchase 39301161 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39301161?
You can download the 39301161 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39301161?
MOLEX
