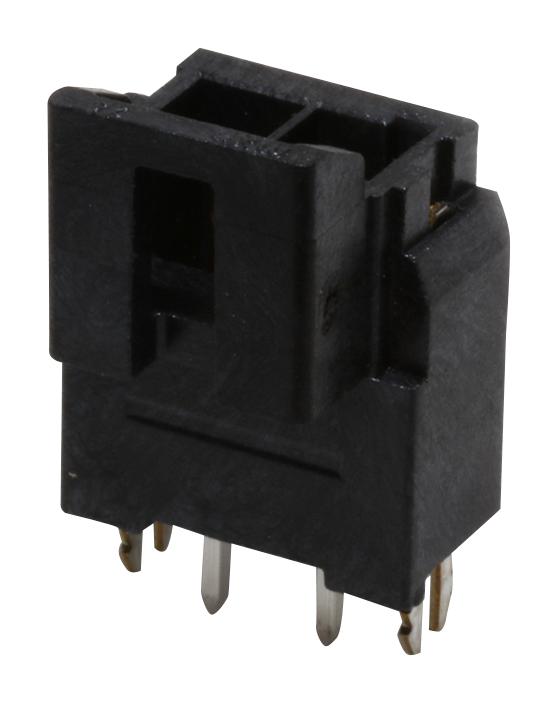

MOLEX 1722871202 Ultra-Fit Power Connector
The MOLEX 172287-1202 is a robust Ultra-Fit vertical header connector designed for secure and efficient wire-to-board connections in power applications. Featuring a 3.50mm pitch and 2 circuits, this connector offers a compact and reliable solution. The gold plating on the mating interface ensures excellent conductivity and durability, while the tin plating on the termination interface facilitates easy soldering. Its glow-wire capability and compatibility with various PCB thicknesses make it suitable for a wide range of industrial and commercial applications. Refer to the product specification for detailed current rating information.
MOLEX 1722871202 Ultra-Fit Power Connector Specifications:
- PCB Headers: 172287
- Series: 172287
- Application: Power, Wire-to-Board
- Circuits (Loaded): 2
- Color - Resin: Black
- Durability (mating cycles max): 200
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Number of Rows: 1
- Orientation: Vertical
- PCB Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.50mm
- Pitch - Termination Interface: 3.50mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- SMC: Yes
- Temperature Range - Operating: -40° to +120°C
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 400V AC (RMS)/DC
- Mates With: Ultra-Fit Receptacle Housing 172256
