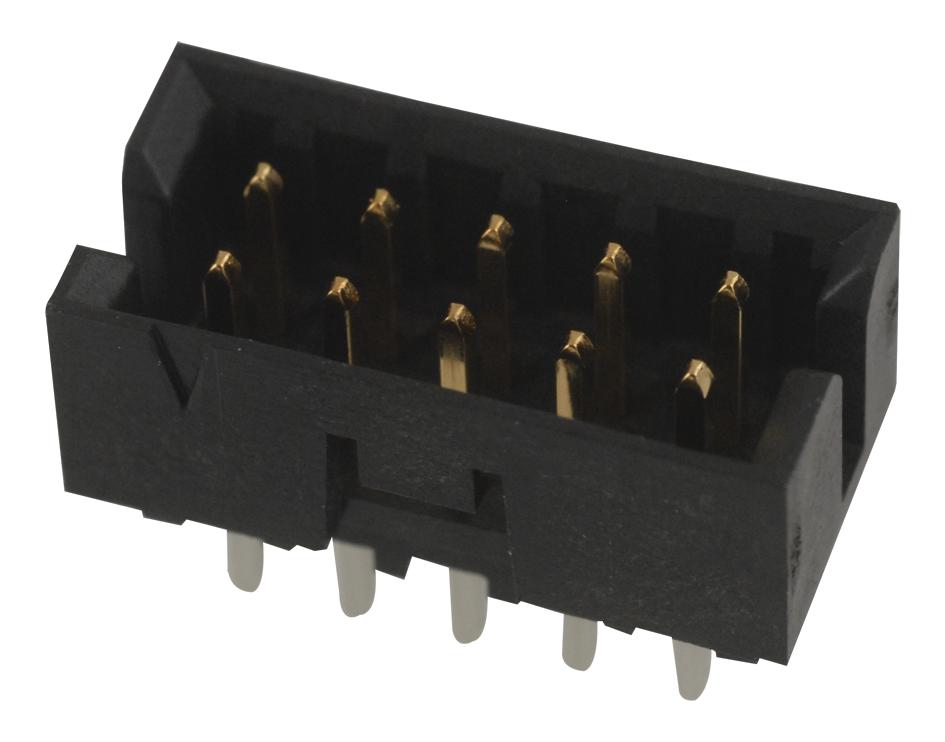

MOLEX 878312010 Milli-Grid Header
The MOLEX 87831-2010 Milli-Grid Header is a robust connector solution designed for wire-to-board applications, particularly within the automotive industry. This header features a 2.00mm pitch and a vertical through-hole configuration, providing a secure and reliable connection. The shrouded design enhances protection against environmental factors and accidental contact. With 20 circuits and a polarized slot, it ensures proper alignment and mating. Constructed with phosphor bronze and nylon materials, and finished with gold and tin plating, this connector offers excellent durability and conductivity. It is RoHS compliant and designed for efficient integration into various electronic systems.
MOLEX 878312010 Milli-Grid Header Specifications:
- Overview: Milli-Grid Connector System
- Description: 2.00mm Pitch Milli-Grid Header, Vertical, Through Hole, Shrouded, 20 Circuits, 0.38µm Gold (Au) Plating, with Center Polarization Slot, with Locking Window, without PCB Locator, Tube
- Series: 87831
- Application: Automotive
- Circuits (Loaded): 20
- Circuits (maximum): 20
- Color - Resin: Black
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.50mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tube
- Pitch - Mating Interface: 2.00mm
- Pitch - Termination Interface: 2.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.905µm
- Polarized to PCB: No
- Shrouded: Yes
- Stackable: No
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 125V
- Duration at Max. Process Temperature (seconds): 011
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 265
- Temperature Range - Operating: -55° to +105°C
- Termination Interface: Style: Through Hole
- UPC: 800756752532
- Mates With: Milli-Grid Vertical Through Hole Receptacle 79107 , 78787 , Milli-Grid Flex-to-Board Vertical Receptacle 79108 , Milli-Grid Vertical Surface Mount Receptacle 79109 , 78788 , Milli-Grid Crimp Housing 51110 , Milli-Grid Cable-to-Board Receptacle 87568
- Surface Mount Compatible (SMC): Yes
