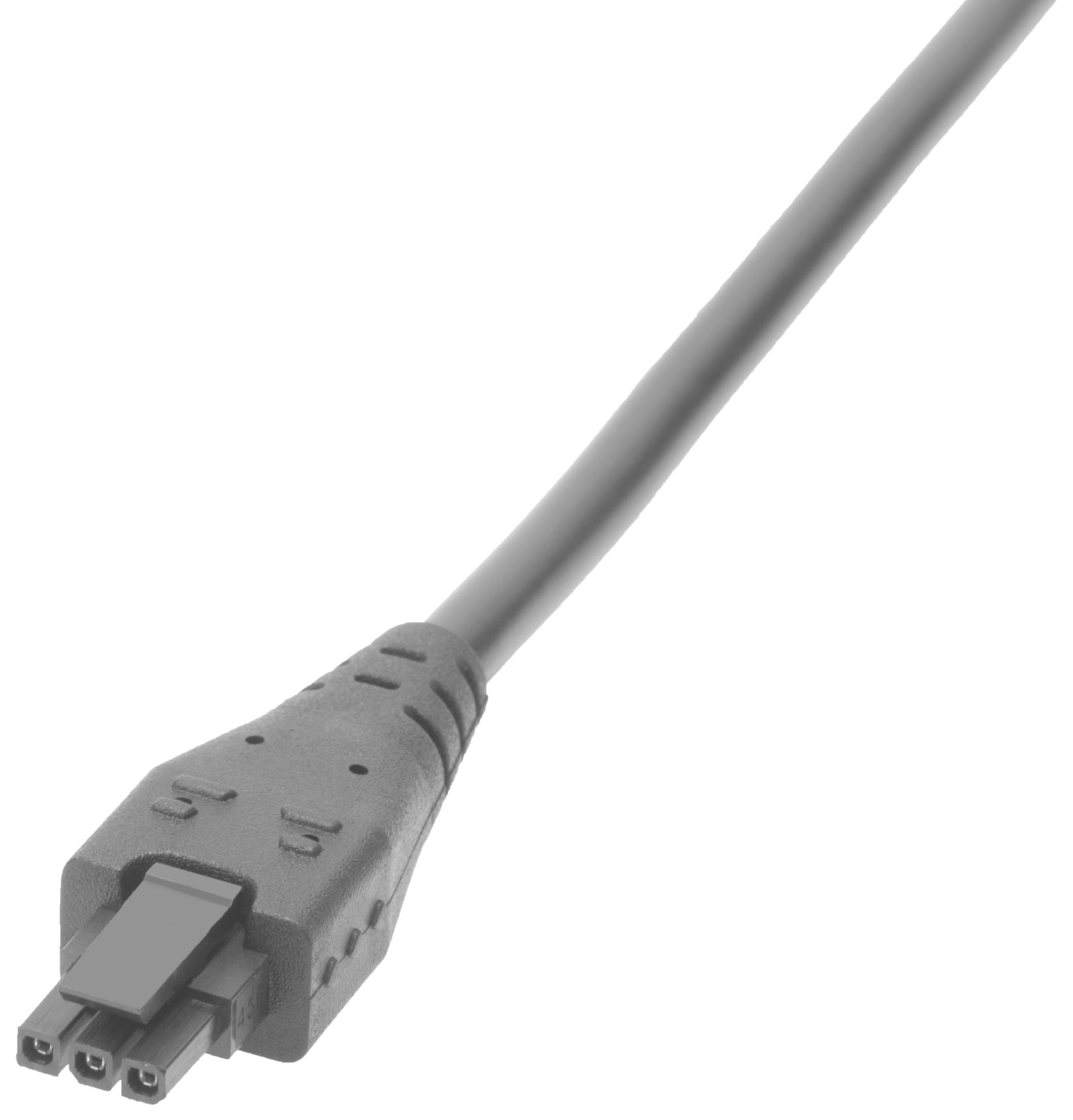

MOLEX 2147700230 Micro-Fit Cable Assembly
The Micro-Fit 3.0 female-to-female cable assembly features durable, overmolded connectors with strain relief, ideal for rugged signal connections across consumer, data, and computing systems. It includes a locking tang for secure mating, polarized design to prevent mis-mating, and supports at least 30 mating cycles. Rated for 300V AC/DC and 8.5A per contact, it operates from -20°C to +80°C. The black nylon housing, phosphor bronze, and tin-plated contacts ensure reliable electrical connections, compliant with UL standards for safety and durability.
MOLEX 2147700230 Micro-Fit Cable Assembly Specifications:
- Cable Length: 3.0m
- Circuits: 2
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Net Weight: 122.154/g
- Number of Rows: 1
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: Tin
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 20
- Wire/Cable Type: UL 2464
- Current - Maximum per Contact: 8.5A
- Temperature Range: -20°C to +80°C
- Flammability Rating: UL 94V-0
- Electrical Rating: 300V AC/DC
- Termination Interface: Crimp or Compression
- Durability: At least 30 mating cycles
Buy the Molex 214770 – Reliable Micro-Fit Connectors for Industrial Applications
Order the Molex Micro-Fit 3.0 female-to-female cable assembly online today and experience a durable, high-quality connection solution designed for rugged industrial, consumer, and data applications. With overmolded connectors, strain relief, and a locking tang, this assembly ensures secure, reliable operation in challenging environments. Rated for 300V and 8.5A per contact, it supports at least 30 mating cycles, features UL 94V-0 flammability, and operates efficiently from -20°C to +80°C. Perfect for versatile, long-lasting signal connections in technical systems.
Get Molex 214770 today—built for secure, rugged signal connections and long-lasting durability in demanding environments.
