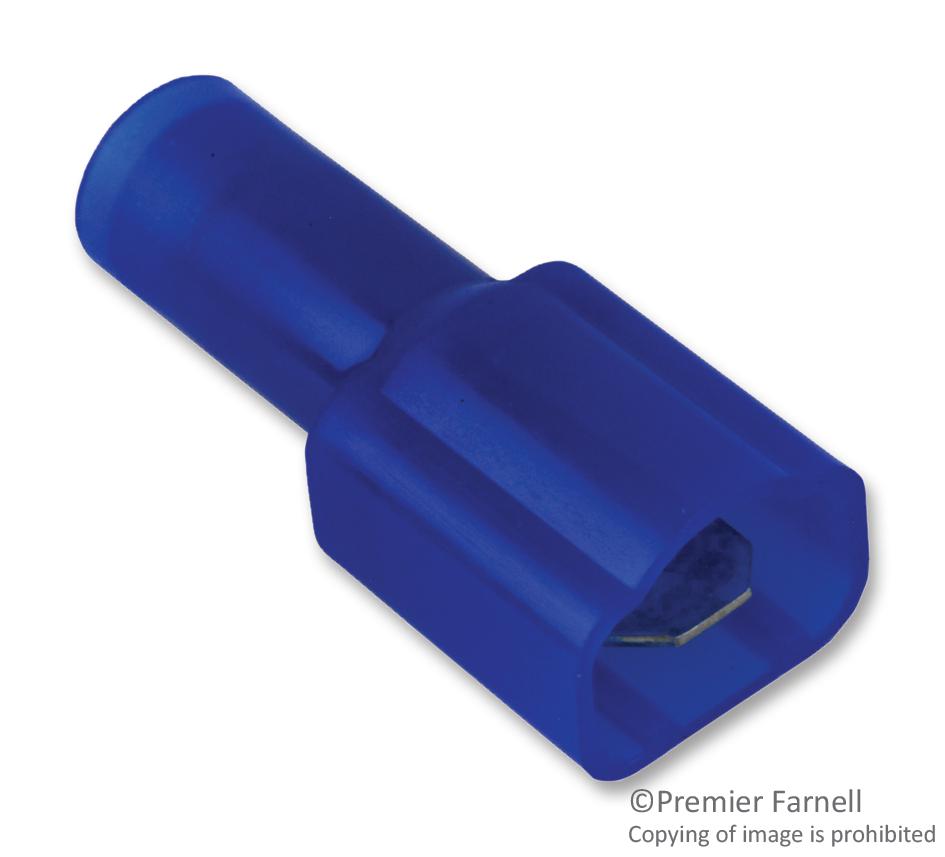

MOLEX 190010009 Avikrimp Quick Disconnect Terminal
The MOLEX 19001-0009 Avikrimp Quick Disconnect terminal is a robust and reliable solution for terminating wires in a variety of applications. Designed for use with 14-16 AWG wire, this male terminal offers a secure and efficient connection. Its closed barrel construction, combined with a blue nylon insulation, provides excellent insulation and durability. The terminal is part of the MOLEX 19001 series and is commonly used in automotive, industrial, and consumer electronics applications where quick and easy wire termination is required. It is RoHS compliant and features a robust design for long-lasting performance.
MOLEX 190010009 Avikrimp Quick Disconnect Terminal Specifications:
- series: 19001
- crimp_quality: Fully
- gender: Male
- insulation_lock: No
- material_metal: Brass
- material_plating: Zinc Chromate
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- tab_thickness: 0.51mm
- tab_width: 4.75mm
- temperature_range: -65° to +105°C
- wire_insulation_diameter: 4.32mm max.
- wire_size_awg: 14, 16
- wire_size_mm2: 1.30-2.00
- voltage_maximum: 300V
- net_weight: 1.280/g
- orientation: Straight
- packaging_type: on Reel
- barrel_type: Closed
- color_resin: Blue
- flammability: 94V-2
- upc: 800753026643
- application_tooling_1: ATP Crimp Dies for the Tape Crimp Module and ATP-101 & 301 Press - 192880070
- application_tooling_2: ATP Crimp Dies for the Tape Crimp Module and ATP-101 & 301 Press - 192880085
- application_tooling_3: Mini-Mac Applicator 638851900
- engineering_number: BB-5268T
- drawing_numbers_product_specification: PS-19902-011-001, PS-19902-014-001, PS-19902-015-001
- drawing_numbers_sales: SD-19001-003
- halogen_free_status: Not Low-Halogen
- elv_compliance: Not Relevant
- rohs_status: Not Reviewed
- reach_svhc_compliance: Not Contained Per ED/108/2014
