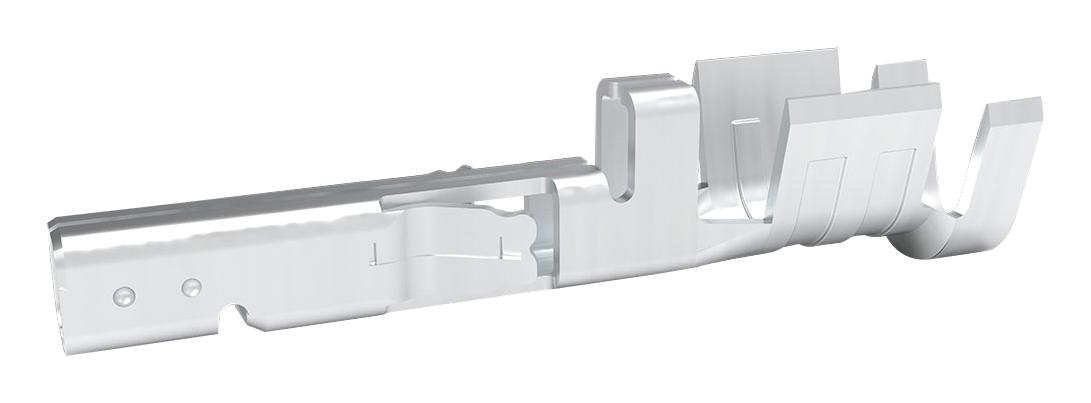

MOLEX 2064600011 Micro-Fit+ Crimp Terminal
The MOLEX 206460-0011 is a Micro-Fit+ crimp terminal, a key component in the Micro-Fit Connector System. This female terminal is designed for power and wire-to-board applications, providing a reliable connection for various wire gauges (26-30 AWG). It features a tin (Sn) over nickel plating for enhanced corrosion resistance and durability. The terminal is compatible with a range of wire insulation diameters and is suitable for applications requiring robust electrical connections. MOLEX offers tooling solutions for efficient and consistent crimping of this terminal, ensuring optimal performance and reliability.
MOLEX 2064600011 Micro-Fit+ Crimp Terminal Specifications:
- overview: Micro-Fit Connector System
- product_family: Crimp Terminals
- application: Power, Wire-to-Board
- crimp_quality_equipment: Yes
- datasheet_order_no: 987651-9552
- product_name: Micro-Fit+
- upc: 191130046959
- durability_mating_cycles_max: 25
- gender: Female
- material_metal: High Copper Alloy
- material_plating_mating: Tin over Nickel
- net_weight_g: 0.087
- packaging_type: Reel
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.27
- wire_size_awg: 26, 28, 30
- wire_size_mm2: 0.05-0.13
- current_maximum_per_contact_a: 12.5
- voltage_maximum_ac_rms_dc_v: 600
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- series: 206460
- use_with: Micro-Fit Receptacle Housing206461
- hand_crimp_tool_for_micro_fit_plus_female_and_tpa_male_terminals_ul1007_wires: 2002186100
- hand_crimp_tool_for_micro_fit_plus_female_and_tpa_male_terminals_ul1061_wires: 2002186200
- fineadjust_applicator_for_micro_fit_plus_crimp_terminal_26_30_awg_ul1007_wires: 2037021000
- fineadjust_applicator_for_micro_fit_plus_crimp_terminal_26_30_awg_ul1061_wire: 2037021500
