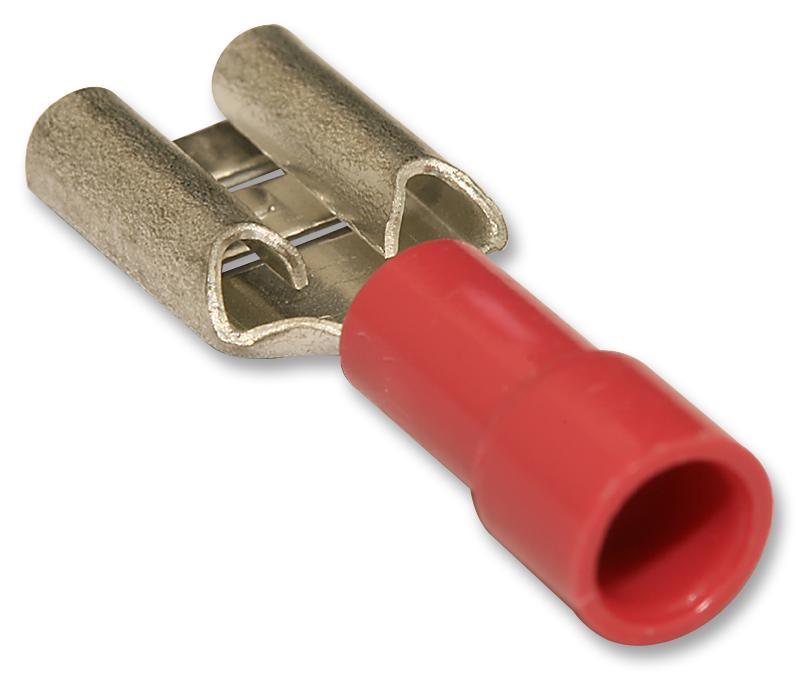

MOLEX 190170001 Quick-Disconnect Terminal
The InsulKrimp Quick-Disconnect Female terminal offers reliable, insulated crimping for 18-22 AWG wires with a box and tab design measuring 2.79 x 0.51mm. Made from brass with tin plating, this UL and CSA certified terminal features a red resin body, flammability rating of 94V-0, and operates within -50°C to +105°C. It ensures secure, polarized connections for electrical applications, supporting voltages up to 600V. Ideal for automation, control panels, and wiring harnesses requiring durable and corrosion-resistant connectors.
MOLEX 190170001 Quick-Disconnect Terminal Specifications:
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PVC
- Flammability: 94V-0
- Temperature Range - Operating: -50°C to +105°C
- Wire Size AWG: 18, 20, 22
- Voltage - Maximum: 600V
- Tab Width: 2.79mm
- Tab Thickness: 0.51mm
- Net Weight: 0.394 grams
- Color - Resin: Red
- Termination Interface: Crimp or Compression
- Packaging Type: Bag
- Lock to Mating Part: No
- Polarized to Mating Part: Yes
- RoHS Compliance: Yes
- Agency Certification: UL, CSA
Buy the Buy Molex InsulKrimp Quick-Disconnect Part Number 190170001 Online
Order the Molex InsulKrimp Quick-Disconnect Female Terminal online today to enjoy fast, secure, and corrosion-resistant electrical connections. Designed for 18-22 AWG wires, it features insulated brass construction with tin plating for durability and optimal conductivity. Certified UL and CSA, supporting voltages up to 600V, this terminal ensures safety and performance in control panels, wiring harnesses, and automation systems. Easy to install and highly reliable, this terminal is ideal for professionals seeking quality components for industrial and electrical applications.
Buy Molex 190170001 now and experience unmatched reliability and performance with durable, insulated quick-disconnect terminals perfect for secure electrical connections.
