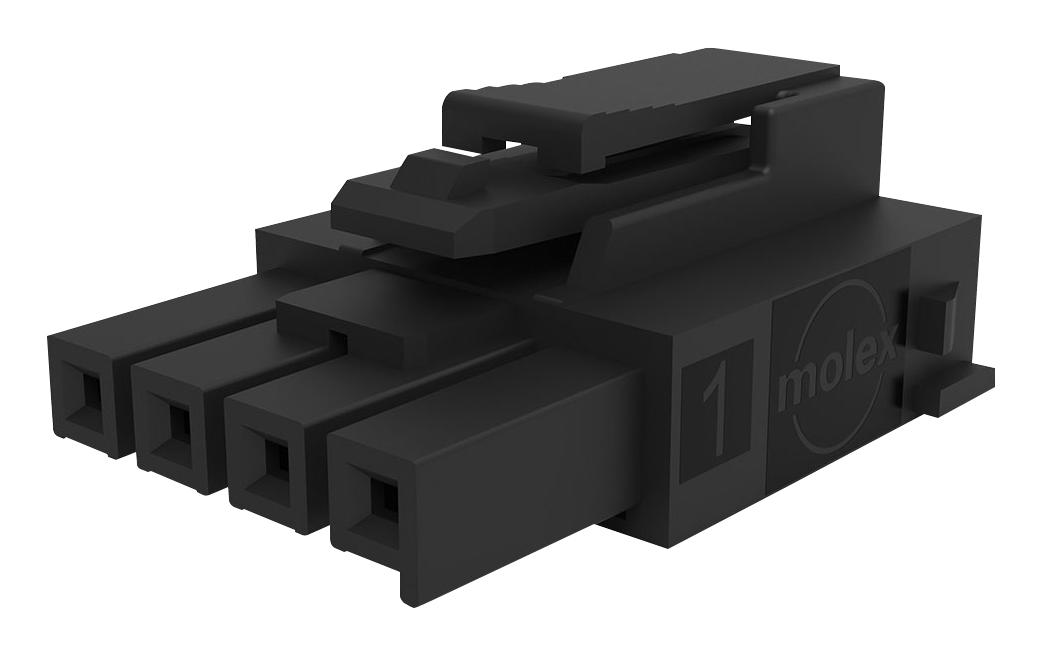

MOLEX 1722563103 Power Receptacle Housing
The Ultra-Fit power connector series features a tangless receptacle housing with a 3.50mm pitch, designed for wire-to-board applications. This receptacle is black, glow-wire capable, and supports up to three circuits in a single row with keying and locking features for secure mating. Made from nylon resin, it operates within a temperature range of -40° to +105°C. Compatible with Ultra-Fit right angle and vertical headers, this power connector ensures reliable electrical connection and robust mechanical performance for industrial and electronic power systems. RoHS compliant and halogen-free for safety and environmental standards.
MOLEX 1722563103 Power Receptacle Housing Specifications:
- Circuits (maximum): 3
- Color: Black
- Material: Nylon resin
- Series: 172256
- Application: Power, wire-to-board
- Glow-Wire Capable: Yes
- Pitch - Mating Interface: 3.50mm
- Pitch - Termination Interface: 3.50mm
- Gender: Receptacle
- Number of Rows: 1
- Temperature Range - Operating: -40°C to +105°C
- Net Weight: 1.253 g
- Keyed to Mating Part: Yes
- Lock to Mating Part: Yes
- Panel Mount: No
- RoHS and China RoHS compliant
- Halogen-Free: No (Not Low-Halogen)
Buy the Molex Series 172256 Power Connectors: 1722563103
Enhance your power systems with the Molex Ultra-Fit tangless receptacle housing featuring a 3.50mm pitch. Designed for wire-to-board applications, it provides secure, keying, and locking features for reliable electrical contact. Constructed from durable nylon resin, the connector supports up to three circuits in a single row for compact solutions. Its operating temperature range from -40°C to +105°C makes it suitable for a variety of industrial environments. RoHS compliant and glow-wire capable for safety and environmental standards, this is an ideal choice for professional electronic connections.
Order your Molex Series 172256 Ultra-Fit tangless power connector housing today and ensure reliable, robust power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 1722563103?
You can click on the BUY or RFQ button to purchase 1722563103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1722563103?
You can download the 1722563103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1722563103?
MOLEX
